Subsequent Work

Install air inlet housing.
> 851419 REMOVING AND INSTALLING AIR INLET HOUSING - section on "Installing"
Install cowl panel cover.
> 508719 REMOVING AND INSTALLING COWL PANEL COVER - section on "Installing"

Insert fuse F12 into the fuse box in the front end.

3.1 Fit fuse F12 on fuse box in the front end.

The fuse assignment is stored in the fuse box and must be checked.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

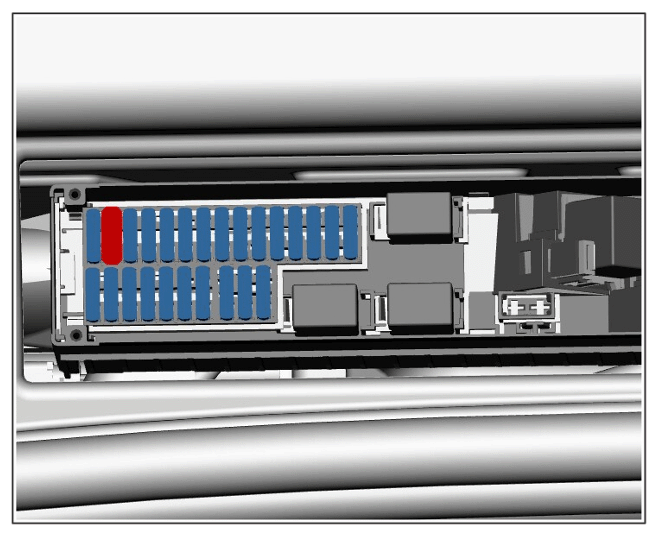

F12 fuse

3.2 Close cover on fuse box in the front end.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

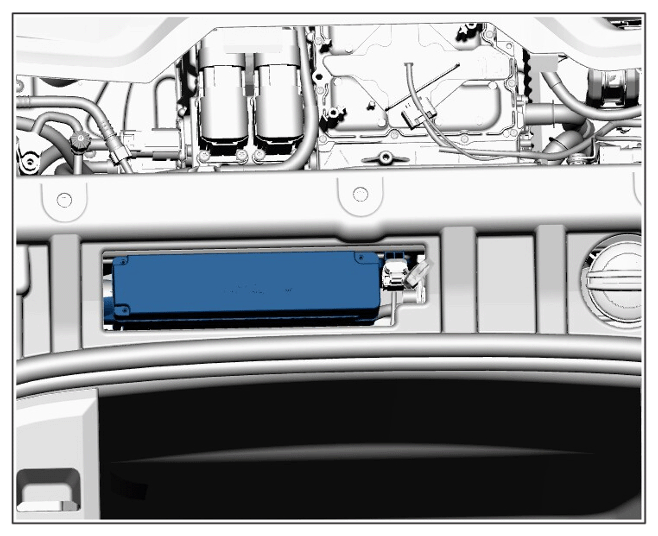

Fuse box in front end

Carry out the work instructions after disconnecting the battery.
> 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING BATTERY
