Preliminary Work

Information

To ensure access to the vehicle interior after disconnecting the battery, the door window on the driver's side must be opened before disconnecting the battery.

Information

To prevent unintentional triggering of the pyro cutters in the BMCe/BCUe, the HVB fuse (fuse box for body front section, fuse F12) must be removed before disconnecting and connecting the 12-volt battery and must be re-inserted after connecting it.

1. Pull fuse F12 into the fuse box in the front end.
   1. 1.1  Open cover on fuse box in the front end.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

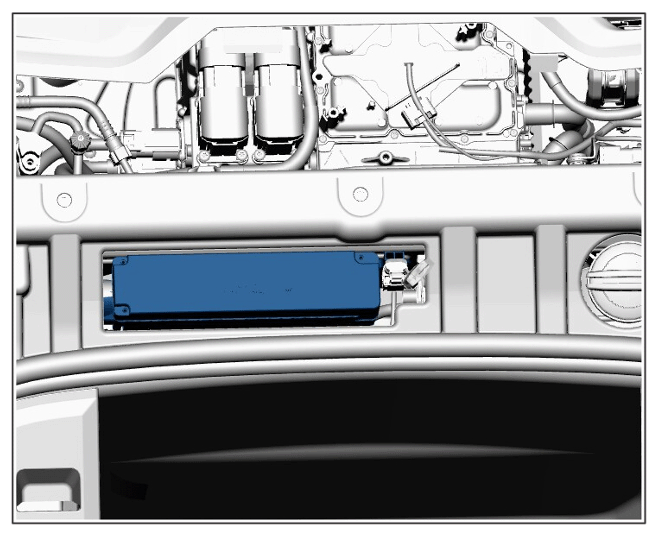

      Fuse box in body front end

   2. 1.2  Pull fuse F12 onto the fuse box in the front end.

      The fuse assignment is stored in the fuse box and must be checked.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

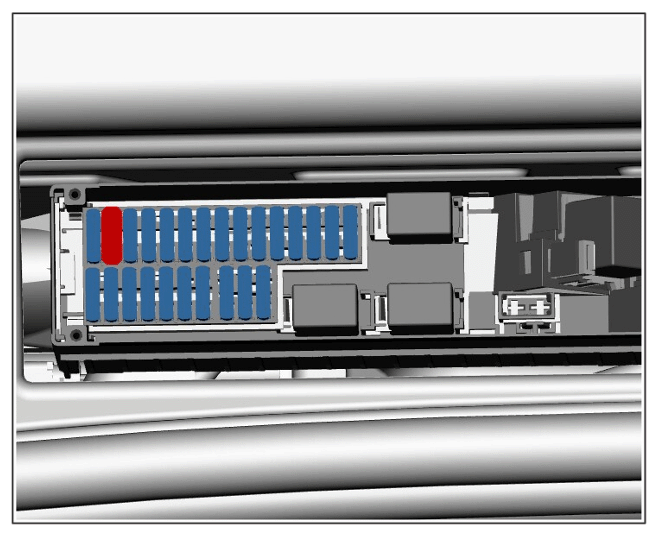

      F12 fuse

2. Remove cowl panel cover.

   > 508719 REMOVING AND INSTALLING COWL PANEL - section on "Removing"

3. Remove air inlet housing.

   > 851419 REMOVING AND INSTALLING AIR INLET HOUSING - section on "Removing"
