Removing Rear Fuse Box

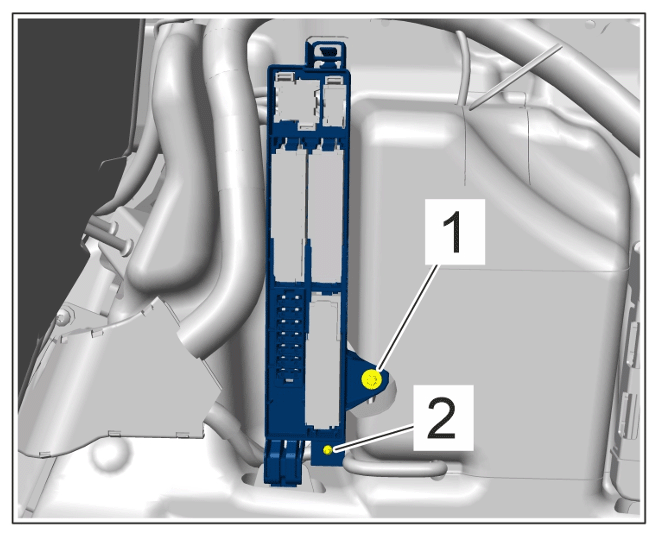

Unscrew screw -1- and unclip cable holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

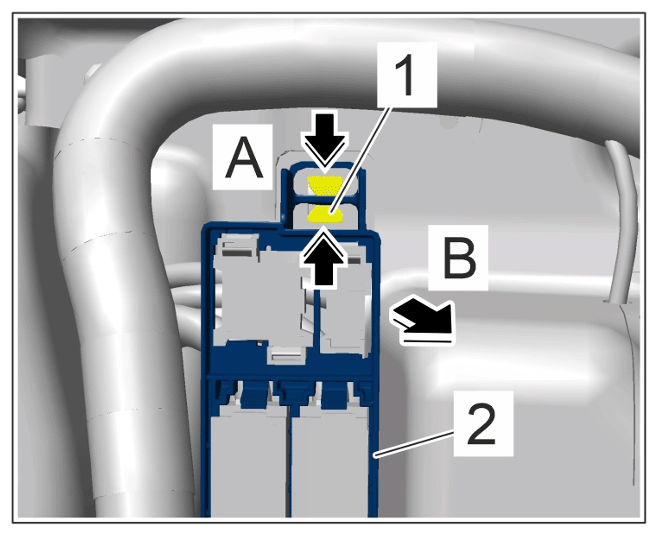

Press locking mechanism -1- together -arrows A- and pull out rear fuse box -2- at the top -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking mechanism
Remove rear fuse box -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear fusebox

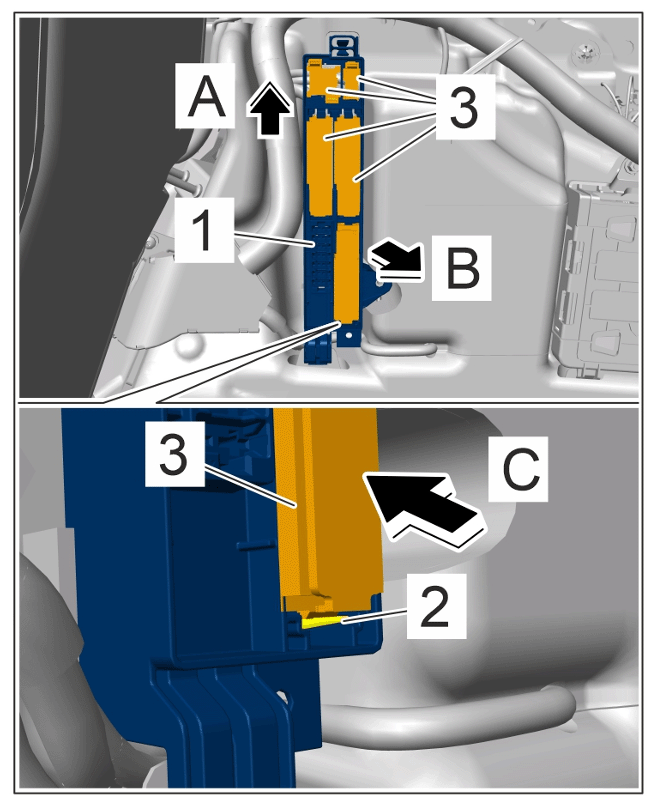

1. 3.1 Release rear fuse box -1- (-arrow A- ) and pull it out -arrow B- .
2. 3.2 Release locking mechanism -2- and press electric plug connections -3- out of the rear fuse box -1- (-arrow C- ).
3. 3.3 Remove rear fuse box -1- .
