Removing Fuse Box In FOOTWELL

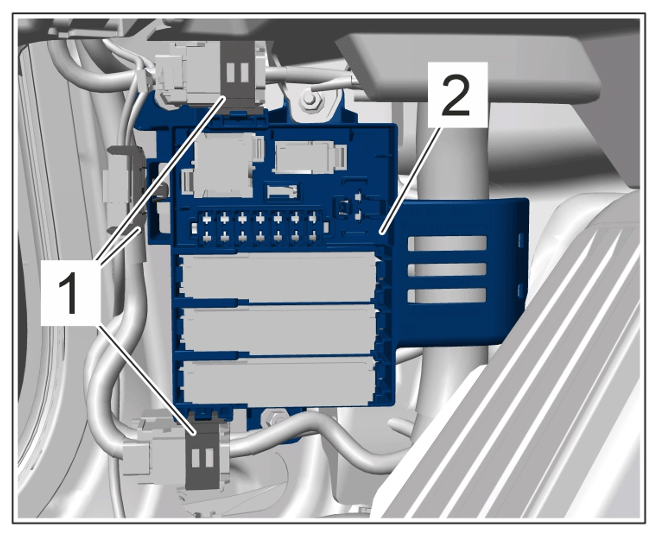

  1. Unclip holder -1-  from fuse box in the footwell -2-
    G15567063Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bracket

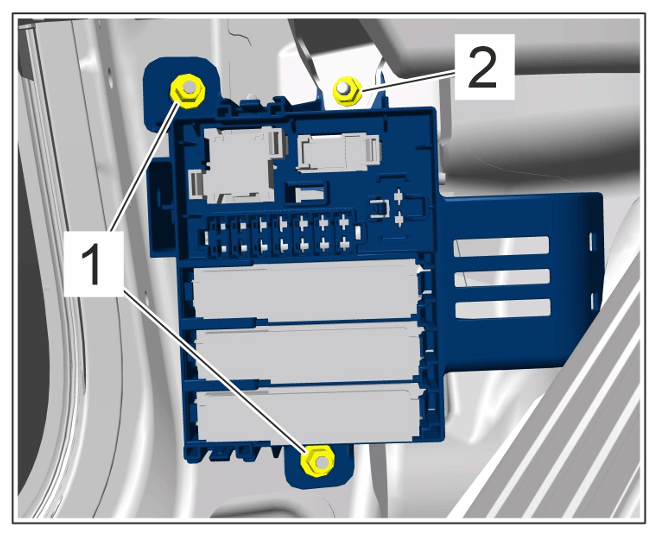

  2. Unscrew nuts -1-  and -2-  .
    G15567064Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nuts

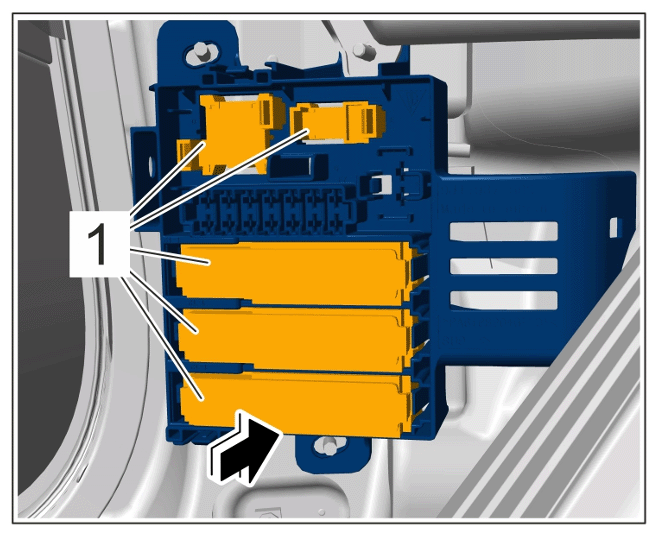

  3. Release electric plug connections -1-  and press them out to the rear -arrow-  .
    G15567065Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

  4. Remove fuse box in footwell.
