Removing Fuse Box At Side Of Dashboard

  1. Remove fuse box at side of dashboard -3-  .

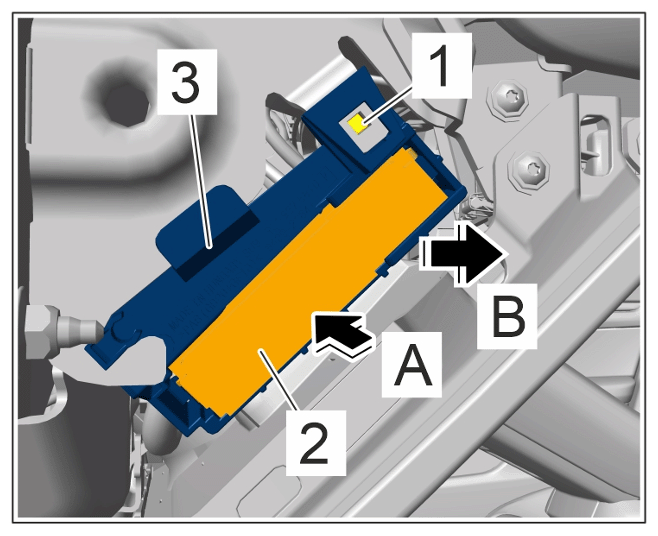

    G15567072Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuse box at side of dashboard

    1. 1.1  Loosen clip -1-  .
    2. 1.2  Release electric plug connection -2-  and press it out to the rear -arrow A-  .
    3. 1.3  Remove fuse box at side of dashboard -3-  (-arrow B-  ).
