Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Nut securing fuse box in body front section to dome strut Item 1 Tightening torque 8 Nm (6 ftlb.)

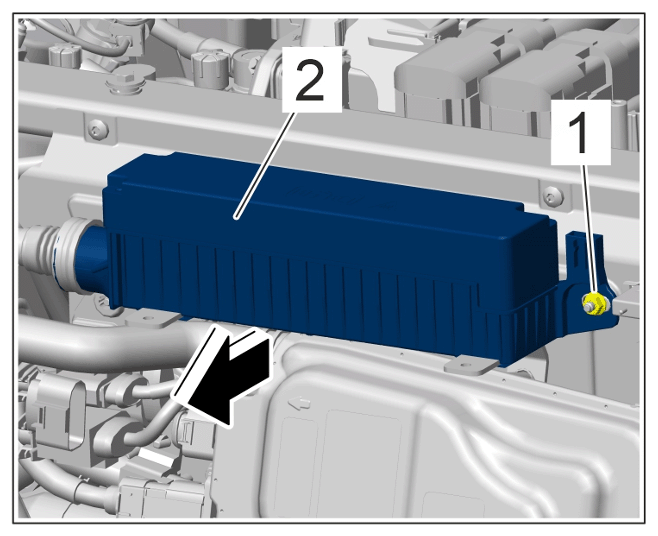

G15567066Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuse box in body front section
