Loosening Fuse Box For Body Front Section

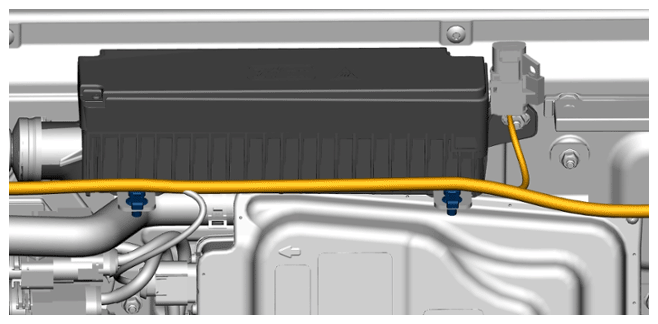

Unclip the electrical cable from the fuse box holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line

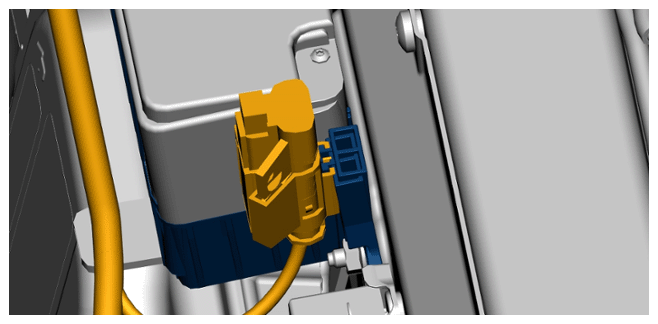

Unclip service disconnector connector from holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Service Disconnect connector

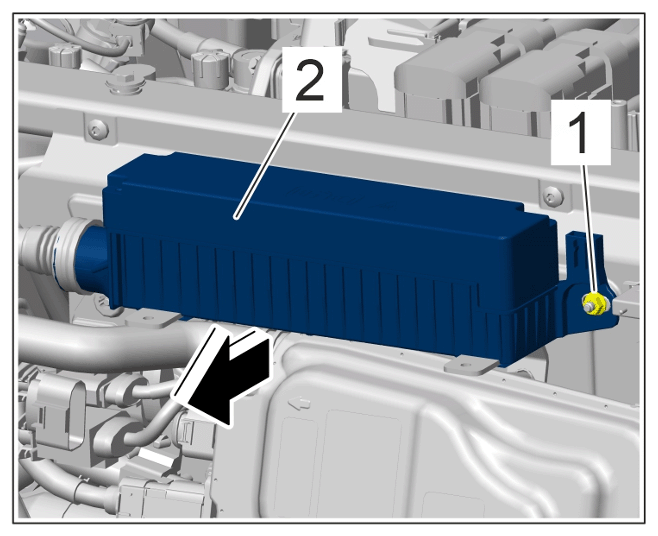

Unscrew nut -1- and pull out fuse box in body front end -2-Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuse box in body front end
