Installing Optical Contacts On Connector Side

Information

Do not remove dust boot until just before connecting contacts.

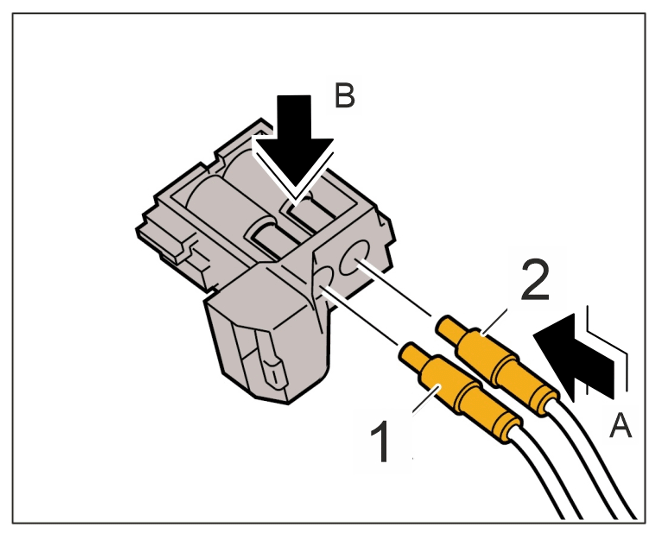

1. Push optical contacts -1-  and -2-  into the connector housing -arrow A-  until they engage securely and close the primary lock -arrow B-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Primary lock

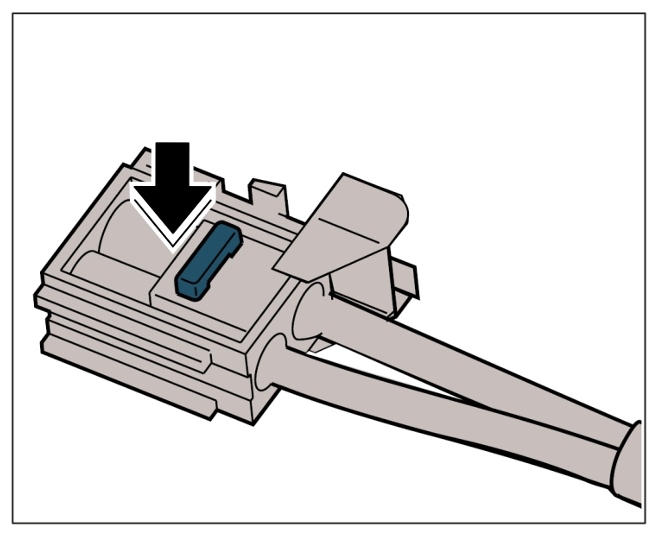

2. Close the secondary lock -arrow-  and check that the optical contacts are fitted securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Secondary lock
