Removing Wire Harness For Power Seats

  1. Release and disconnect electric plug connections -1-  and loosen clips -2-  .

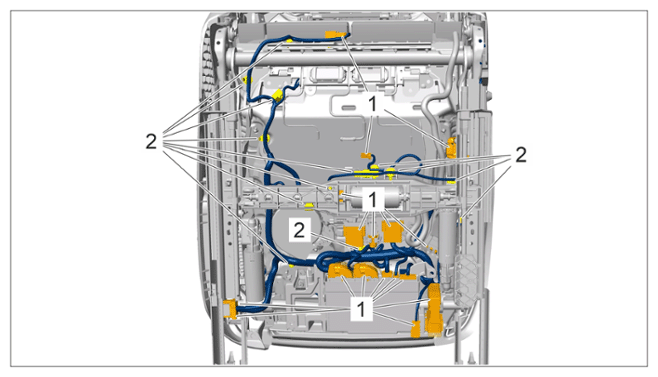

    G15567043Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

  2. Guide out wire harness for power seats and remove it.
