Removing Wire Harness For Front-Seat Backrest

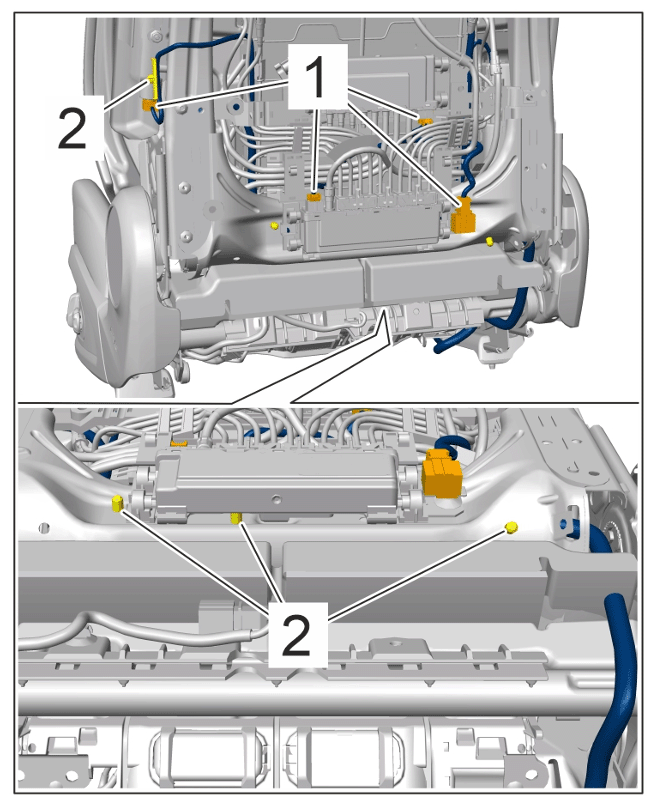

Release and disconnect electric plug connections at the top -1- and loosen clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections, top

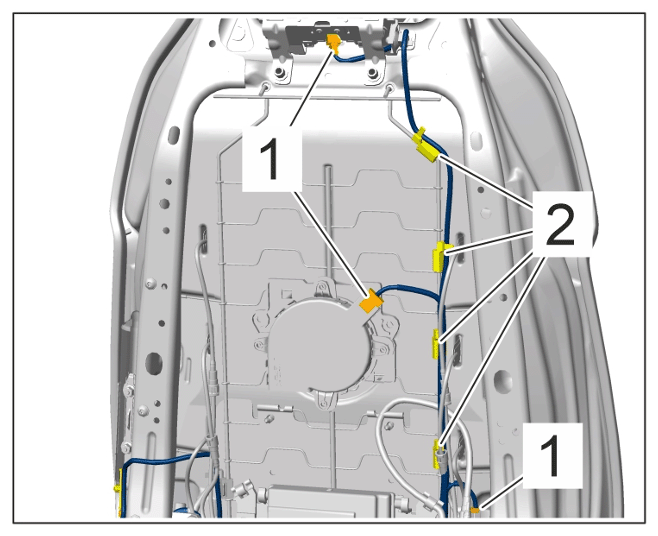

Release and disconnect electric plug connections at the bottom -1- and loosen clips -2-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections, bottom

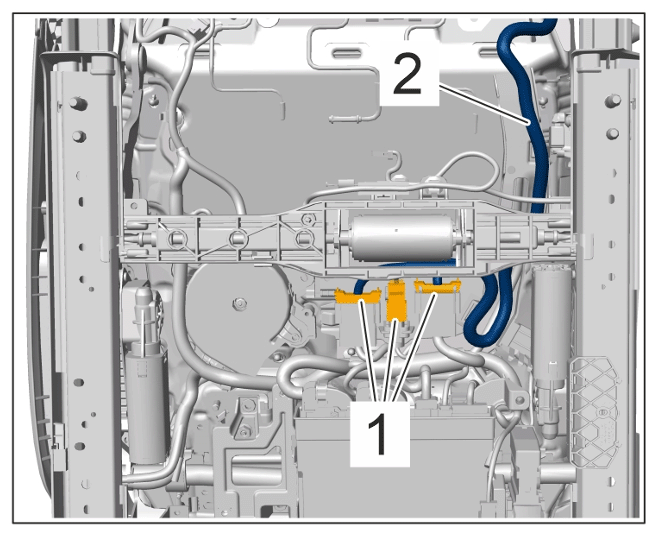

Release and disconnect electric plug connections under the seat -1- and guide out wire harness for front-seat backrest -2-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections under seat
Remove wire harness for front-seat backrest.
