Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Nut securing ground point for wire harness for front drive mechanism to drive mechanism Item 3 Tightening torque 9.5 Nm (7 ftlb.)

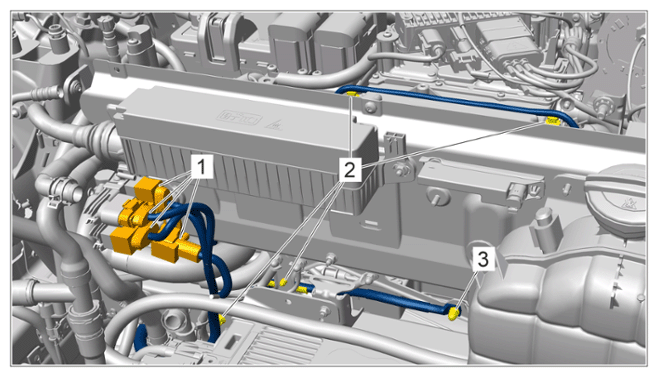

G15567029Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections, top front
