Removing Wire Harness For Front Drive Mechanism

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Disconnect wire harness for front drive mechanism.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

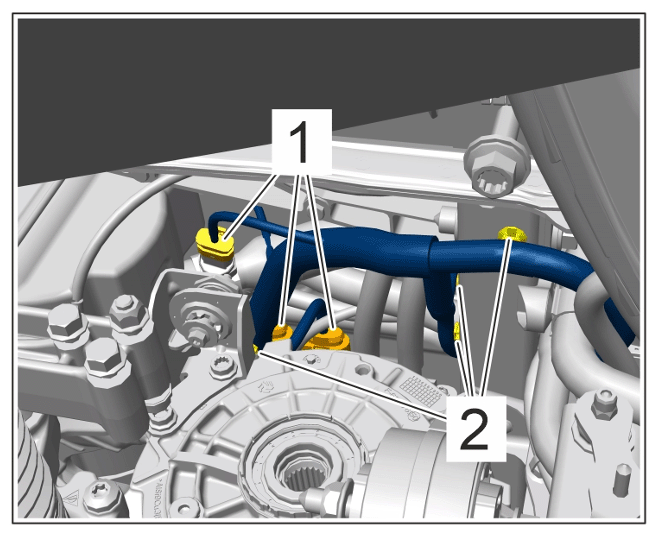

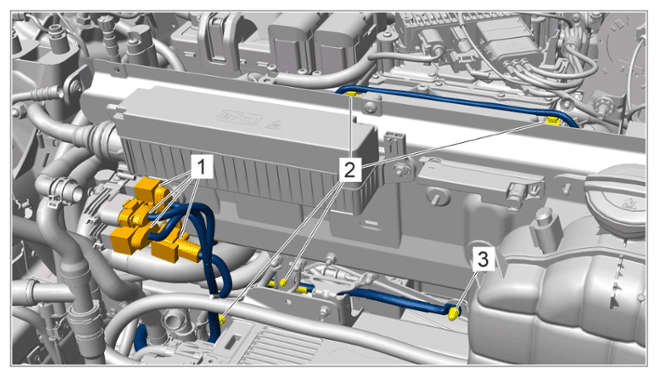

Electric plug connections, top front
1. 1.1 Release and disconnect electric plug connections at the top front -1- .
2. 1.2 Loosen clips -2- .
3. 1.3 Screw off nut -3- .
Release and disconnect electric plug connection at the top rear -1- and loosen clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

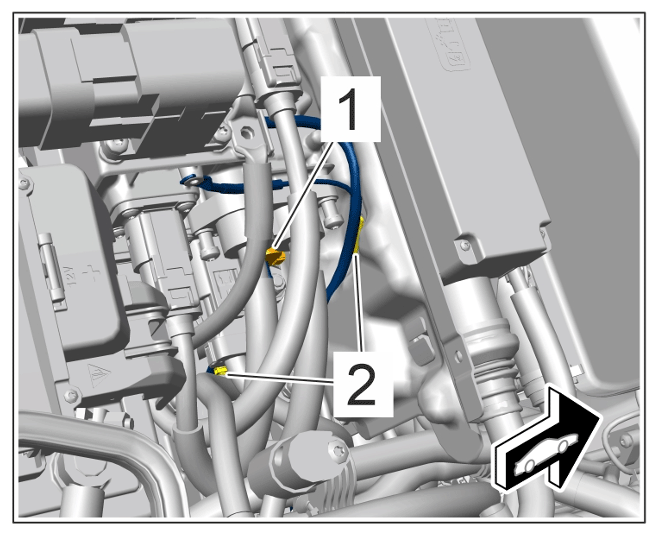

Electric plug connection, top rear
Release and disconnect electric plug connections at the bottom center -1- and loosen clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

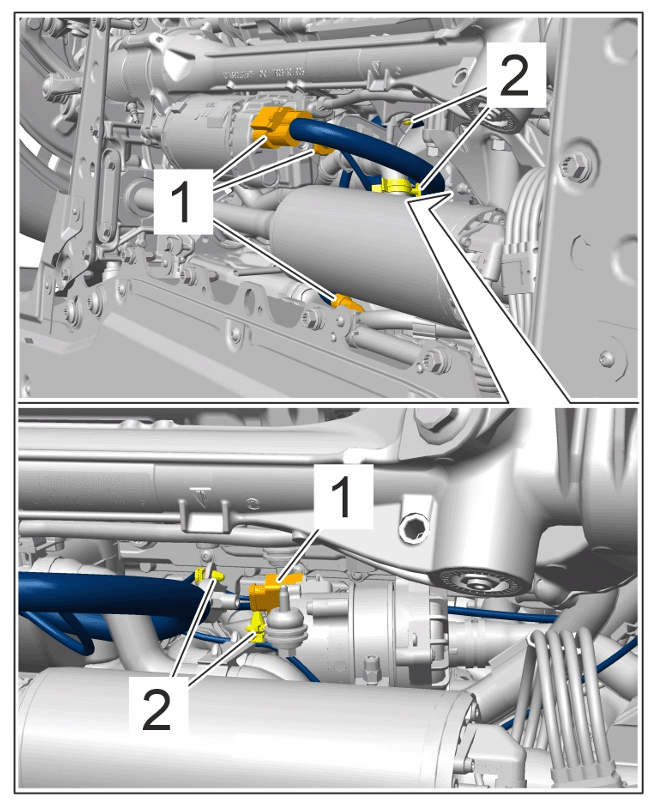

Electric plug connections, bottom center
Release and disconnect electric plug connection at the bottom right -1- and loosen clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

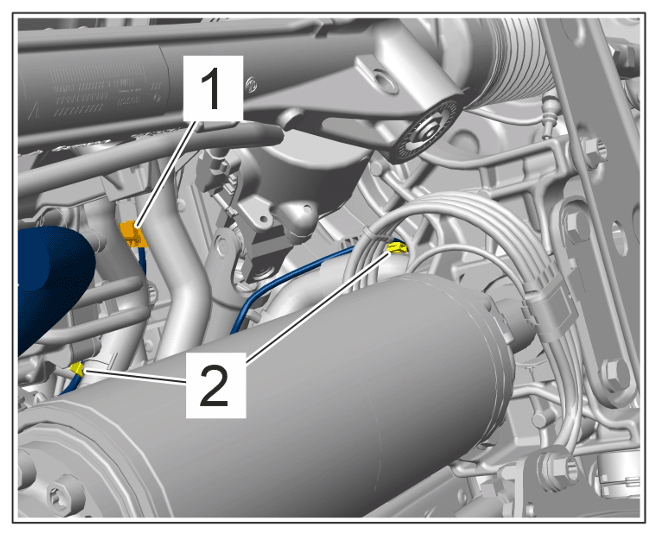

Electric plug connection, bottom right
Release and disconnect electric plug connection at the bottom left -1- and loosen clip -2-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

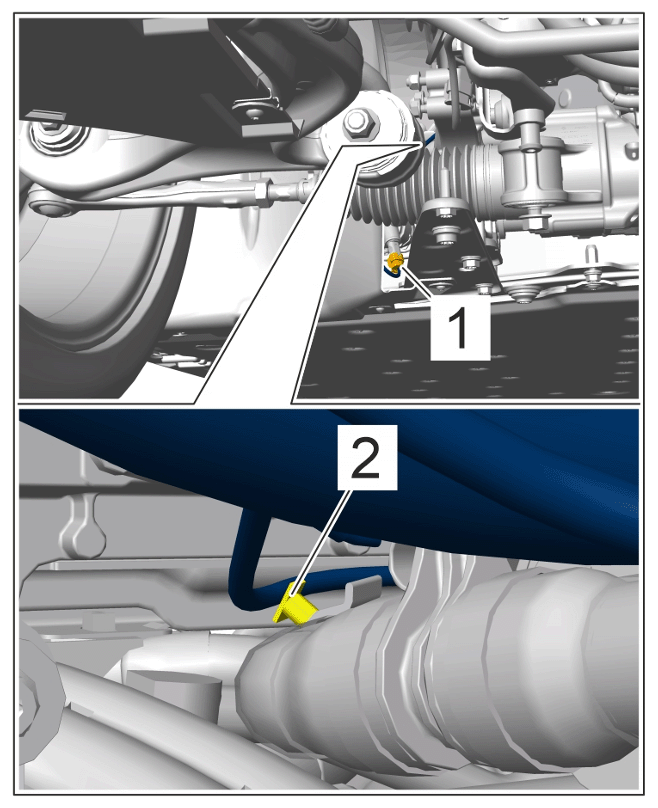

Electric plug connection, bottom left
Release and disconnect electric plug connection at the bottom right -1- and loosen clip -2-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

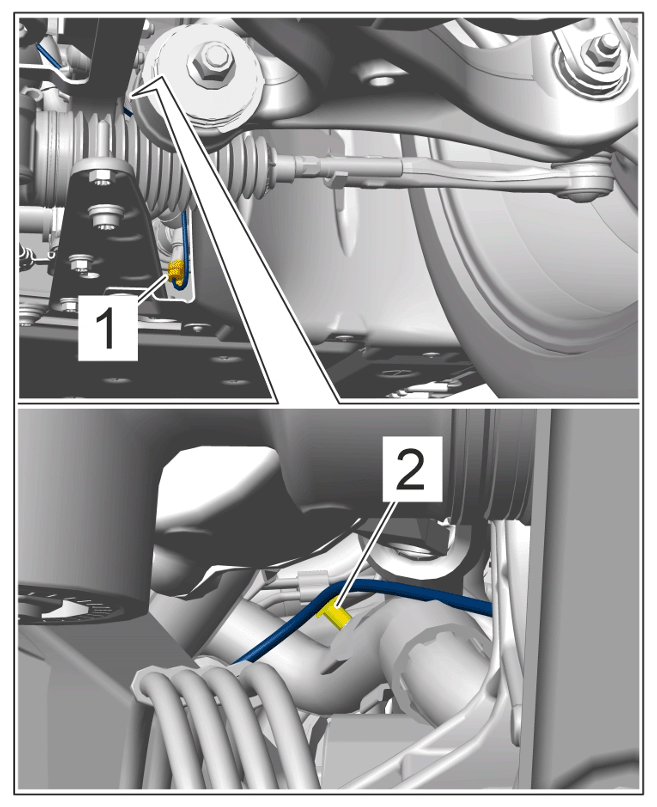

Electric plug connection, bottom right
Release and disconnect electric plug connections at the bottom left -1- and loosen clips -2-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections, bottom left
