Removing Wire Harness For Rear Lid

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

The number of electric plug connections and clips will vary depending on equipment.

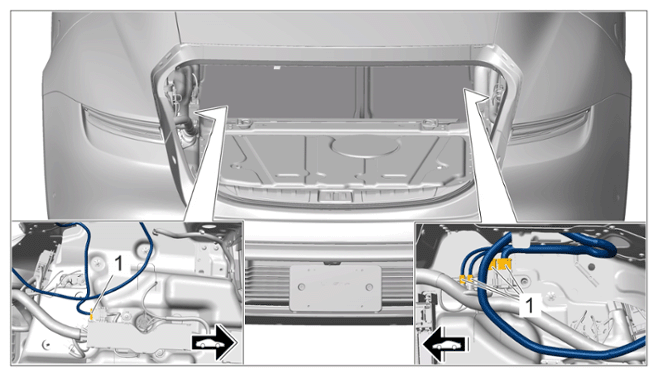

Release and unplug electric plug connections -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

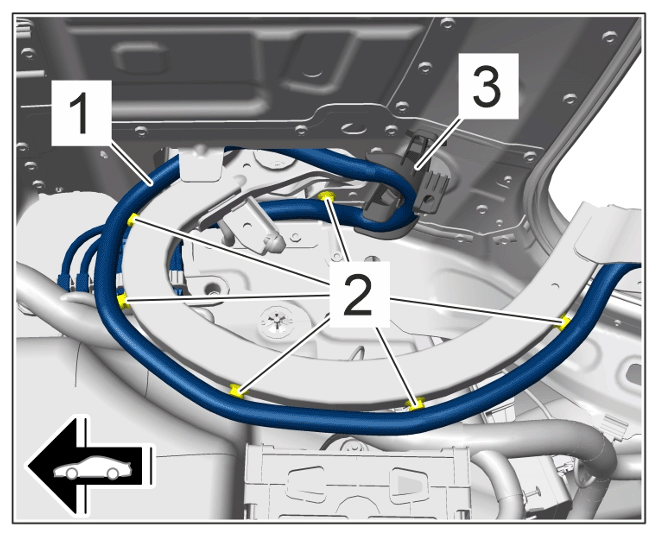

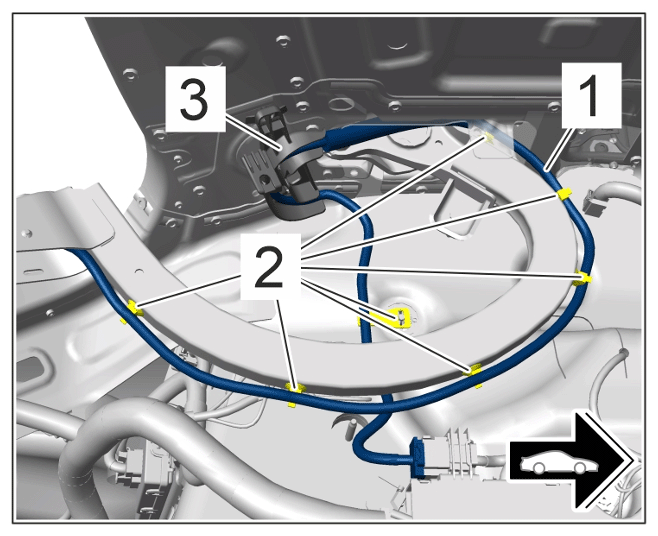

Loosen wire harness for rear lid at the right -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for rear lid at the right
1. 2.1 Unclip clips -2- .
2. 2.2 Guide wire harness for rear lid at the right -1- out of the holder -3- .
3. 2.3 Remove wire harness for rear lid at the right -1- .
Loosen wire harness for ear lid at the left -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for rear lid at the left
1. 3.1 Unclip clips -2- .
2. 3.2 Guide wire harness for rear lid at the left -1- out of the holder -3- .
3. 3.3 Remove wire harness for rear lid at the left -1- .

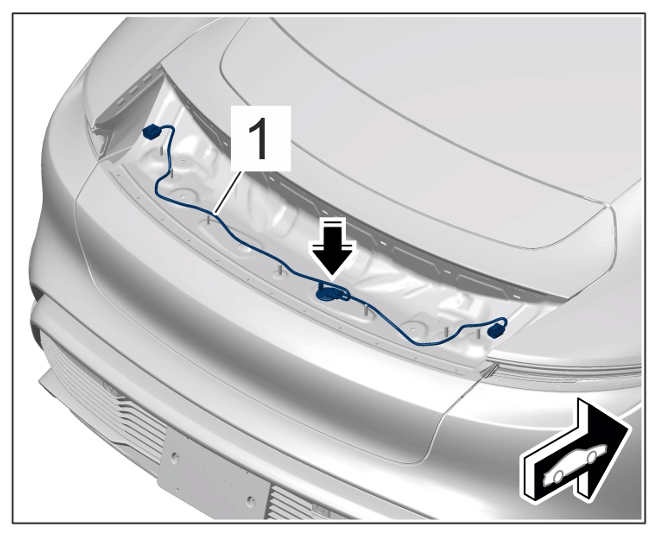

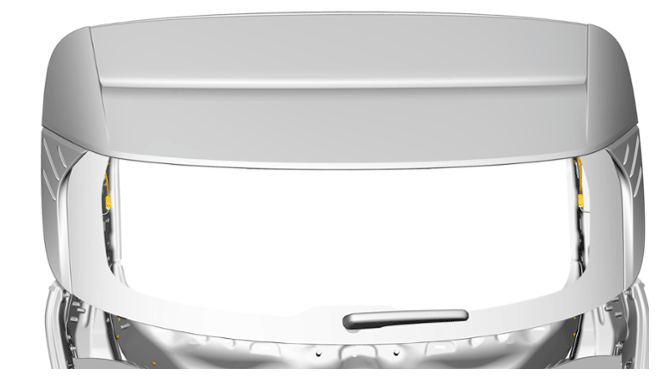

Guide out wire harness for rear lid -1- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for rear lid
Release and disconnect electric plug connections on control unit for rear spoiler.
> 667419 REMOVING AND INSTALLING CONTROL UNIT FOR REAR SPOILER
Release and disconnect electric plug connection on mobile communication antenna on rear lid.
> 914719 REMOVING AND INSTALLING MOBILE COMMUNICATION ANTENNA ON REAR LID
Release and disconnect electric plug connection on SDARS antenna.
> 913819 REMOVING AND INSTALLING SDARS ANTENNA
Release and disconnect electric plug connection on upper part of rear lock.
> 558719 REMOVING AND INSTALLING UPPER PART OF REAR LOCK
Release and disconnect electric plug connection for closing aid.
> 558719 REMOVING AND INSTALLING UPPER PART OF REAR LOCK

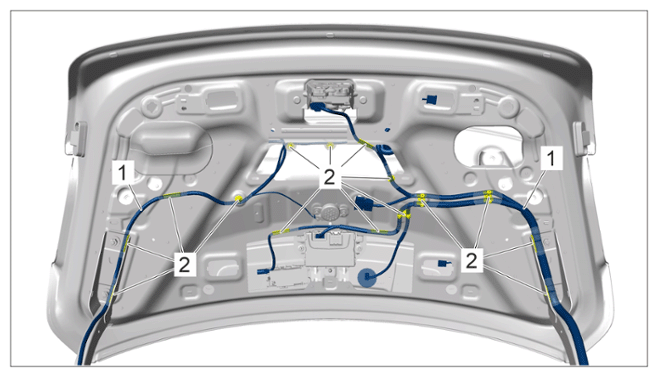

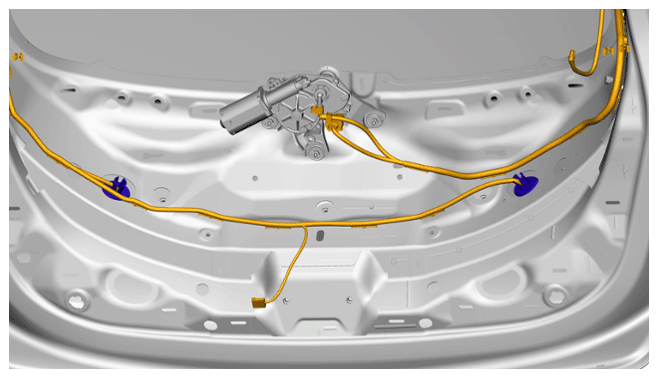

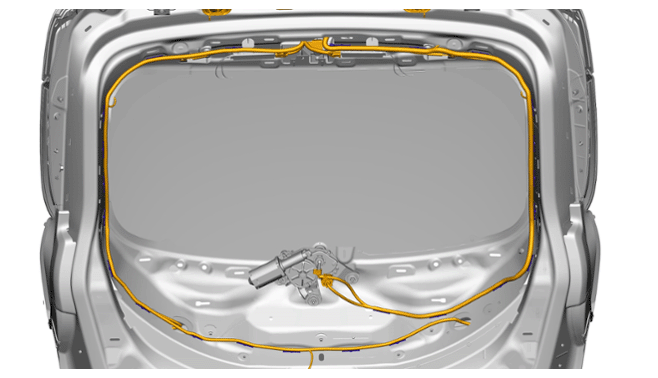

Remove wire harness for rear lid -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for rear lid
1. 10.1 Unclip clips -2- .
2. 10.2 Remove wire harness for rear lid -1- .

Press wire harness for tail light connection with grommet out of the rear lid and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grommet for tail light connection

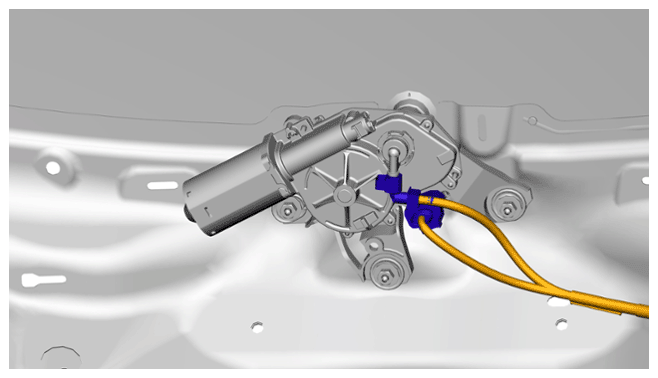

Release and disconnect rear wiper connections.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wiper connections
Disconnect electric connections for the rear window at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric connections for rear window

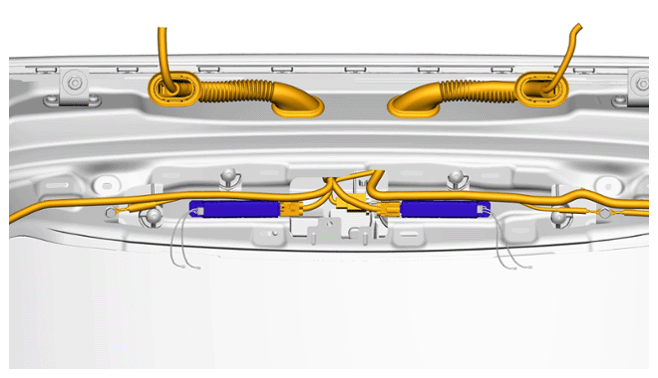

Disconnect electric connection for antenna amplifier on top of lid.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Antenna amplifier

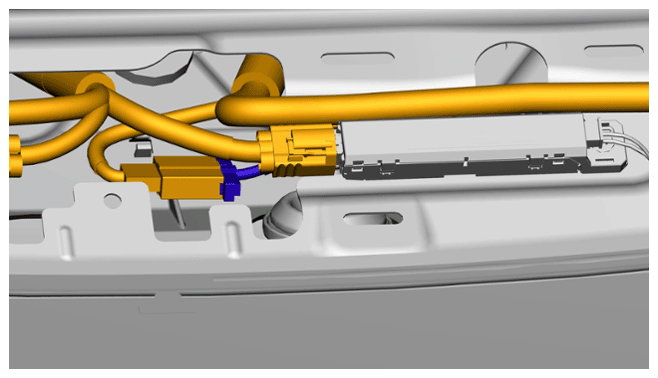

Release and disconnect electric connection for additional brake light.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric connection for additional brake light
Unscrew screws on ground connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground connections
Unclip wire harness for rear lid.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for rear lid

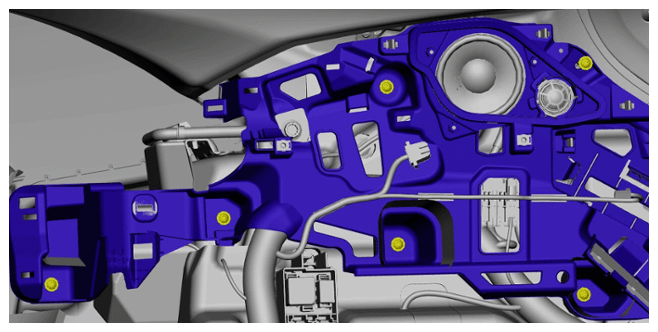

Unscrew screws for cover on right C-pillar and push cover forward slightly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for right C-pillar

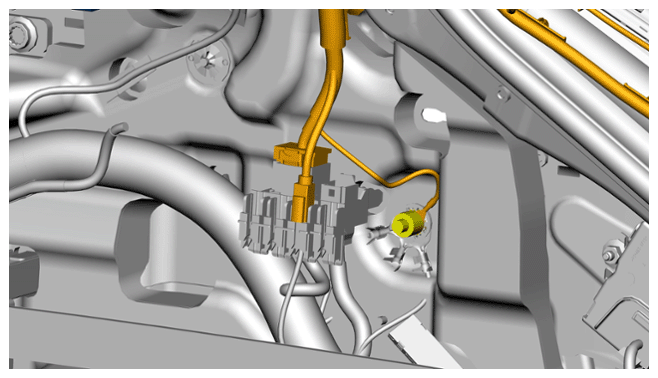

Unscrew screw for ground connection at the right C-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground connection

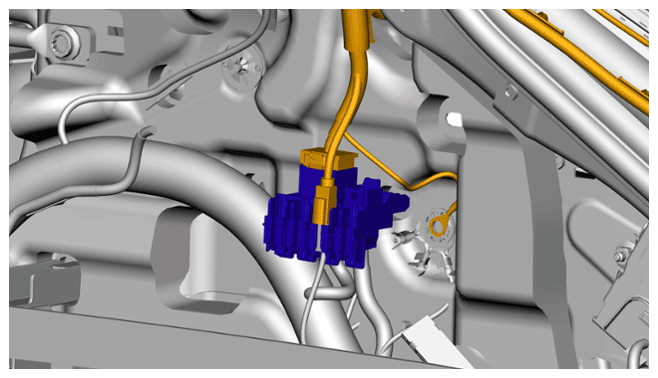

Release and disconnect connector for wire harness for rear lid at the plug-in bracket on the right C-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right plug-in bracket

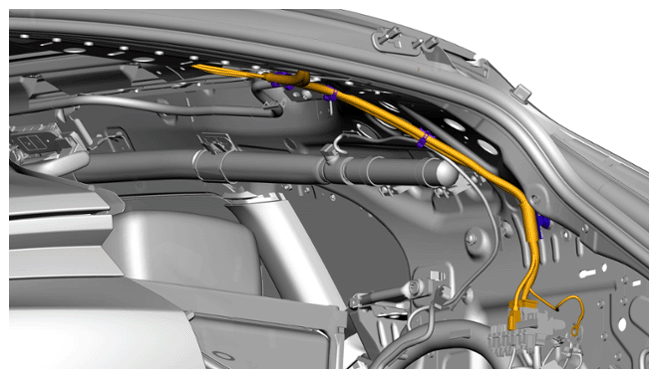

Unclip wire harness for rear lid at the right C-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right D-pillar

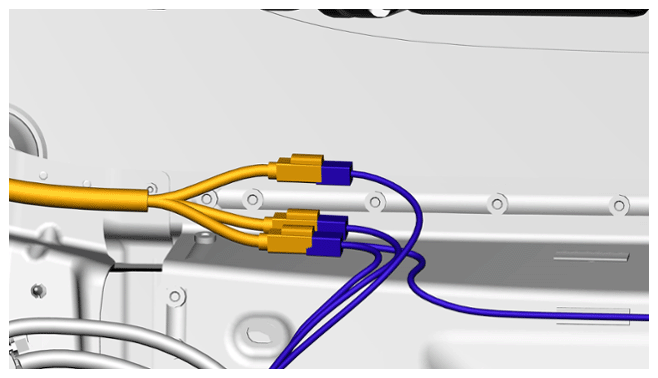

Release and disconnect wire harness for rear lid at the rear right of the roof.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric connections at rear right of roof

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric connections at rear right of roof

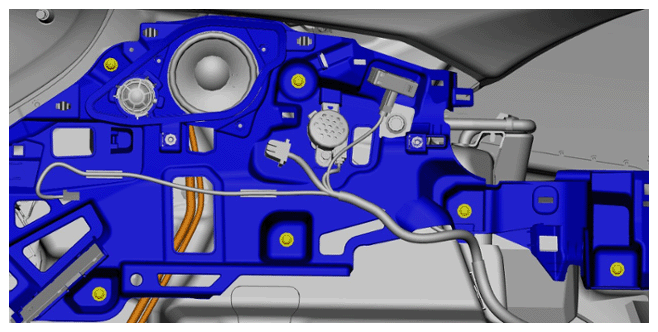

Unscrew screws for cover on left C-pillar and push cover forward slightly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left C-pillar cover

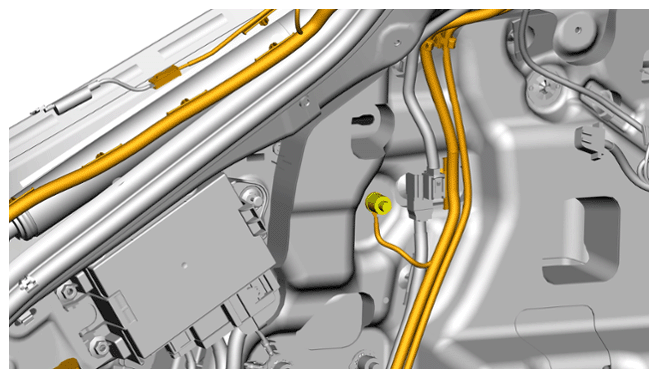

Unscrew screw for ground connection at the left C-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground connection

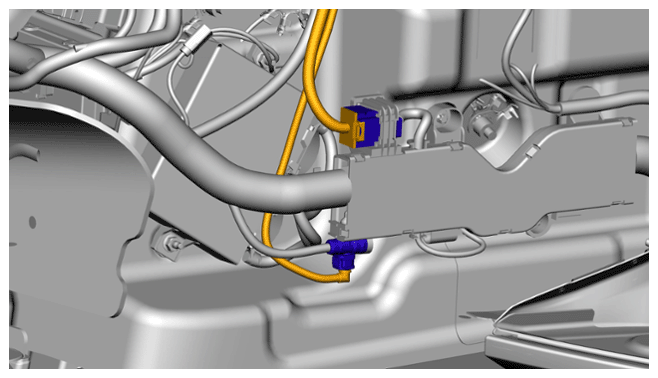

Loosen connector for wire harness for rear lid at the bottom of the left D-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower left D-pillar

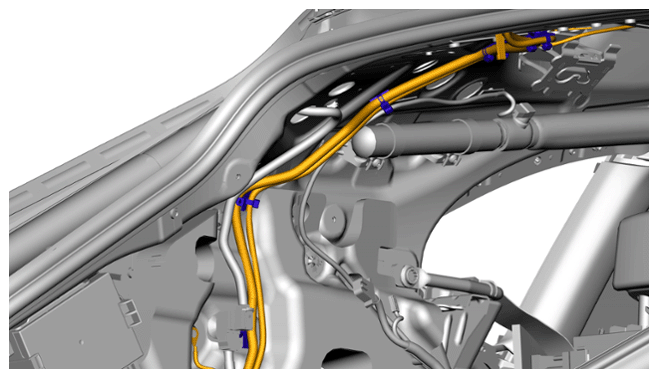

Unclip wire harness for rear lid at the left D-pillar.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

left D-pillar

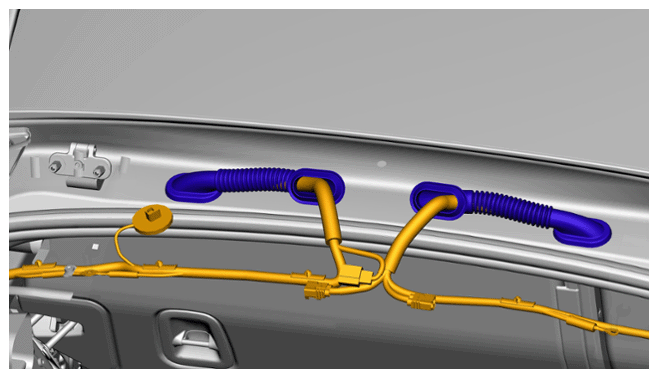

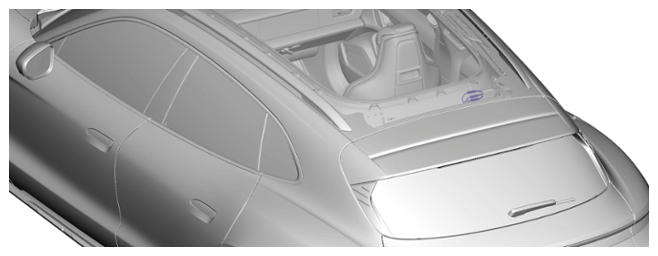

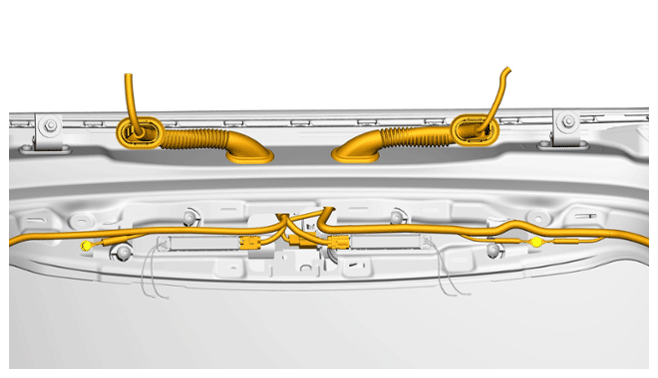

Press out grommets for wire harness for rear lid at the roof and guide wire harness outwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grommets on rear of roof

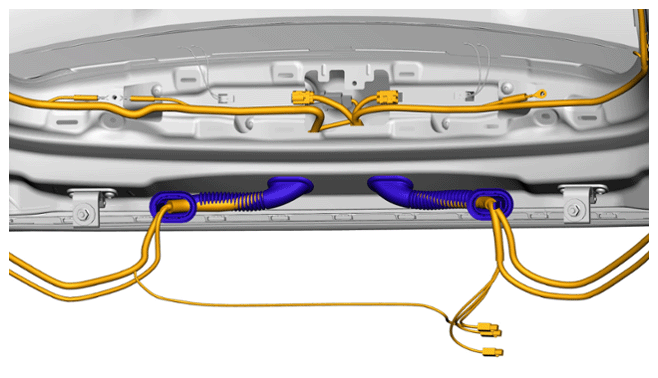

Press out grommets for wire harness for rear lid at the rear of the roof and guide wire harness outwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grommets on rear lid
