Removing Rear Wire Harness

NOTE: Voltage peaks
  • Risk of damage to electrical load or to the control unit

    → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

    → Switch off electrical loads before disconnecting or removing them.

Information

The number of electric plug connections and clips will vary depending on equipment.

  1. Disconnect rear wire harness -1-  .

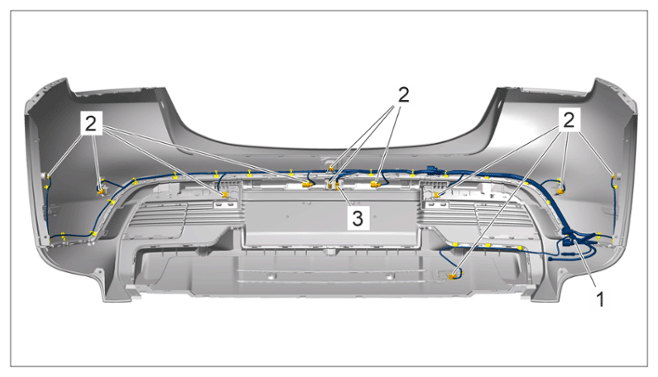

    G15566980Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear wire harness

    1. 1.1  Release and unplug electric plug connections -2-  .
    2. 1.2  Unclip and remove spray nozzle for reversing camera -3-  .
    3. 1.3  Unclip rear wire harness -1-  all the way around and guide it out.
  2. Remove rear wire harness.
