Removing Front Wire Harness

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

The number of electric plug connections and clips will vary depending on equipment.

Information

The removal and installation steps are described for the front left wire harness.

The procedure for removing and installing the right wire harness is identical.

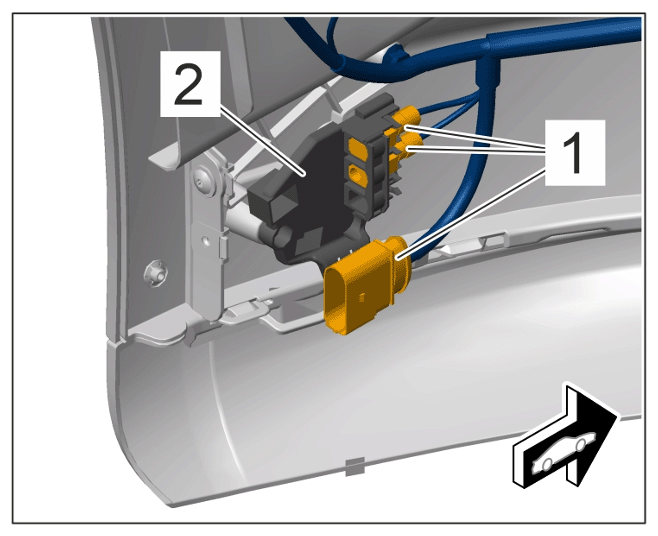

Unclip electric plug connections at connection point -1- from the holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections at connection point

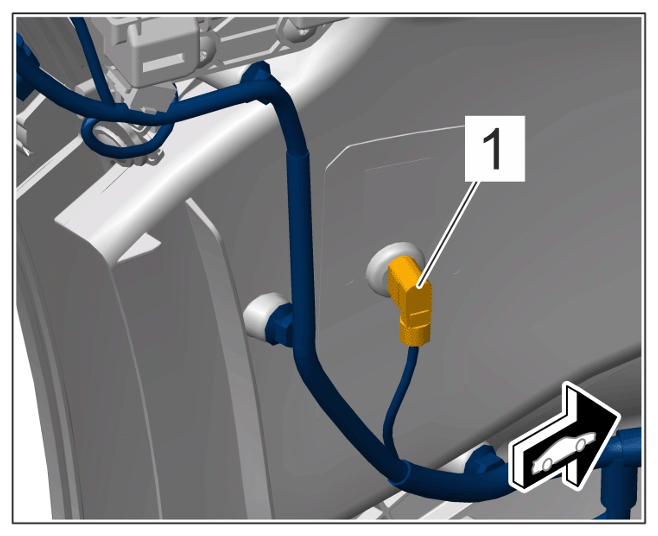

Release and disconnect the electric plug connection for the mobile communication antenna -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for mobile communication antenna

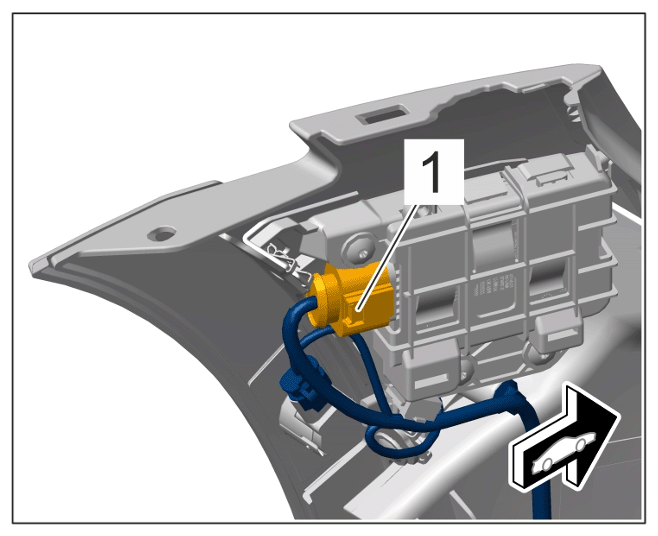

Release and disconnect electric plug connection for radar sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for radar sensor

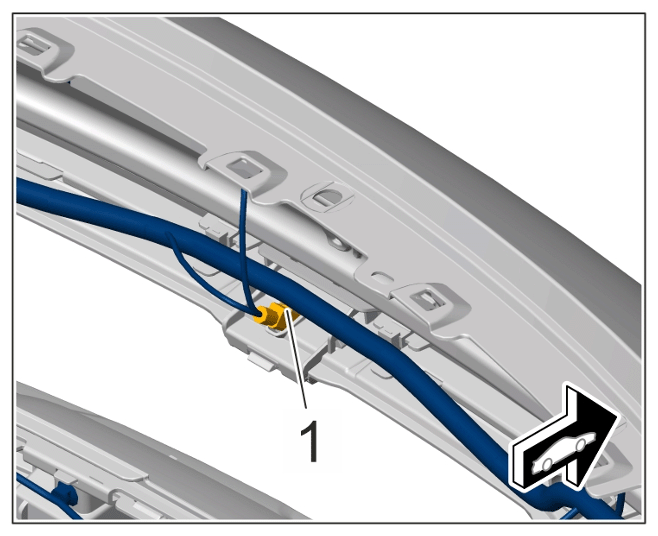

Release and disconnect electric plug connection on pedestrian protection sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for sensor

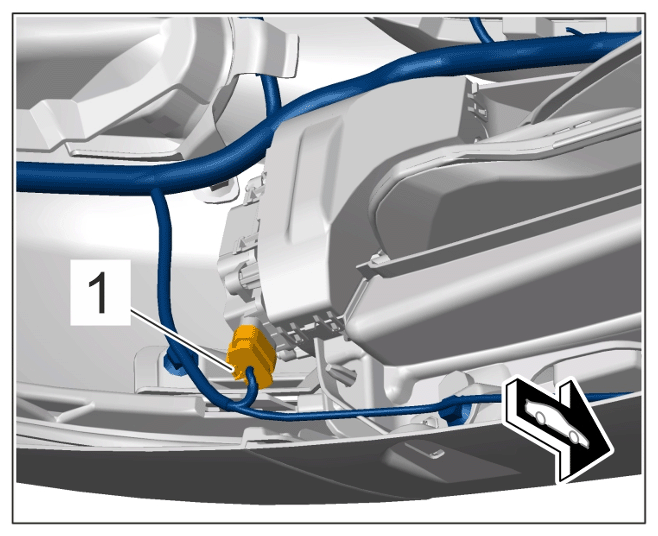

Release electric plug connection for motor cooling-air flaps -1- and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for cooling-air flap motor

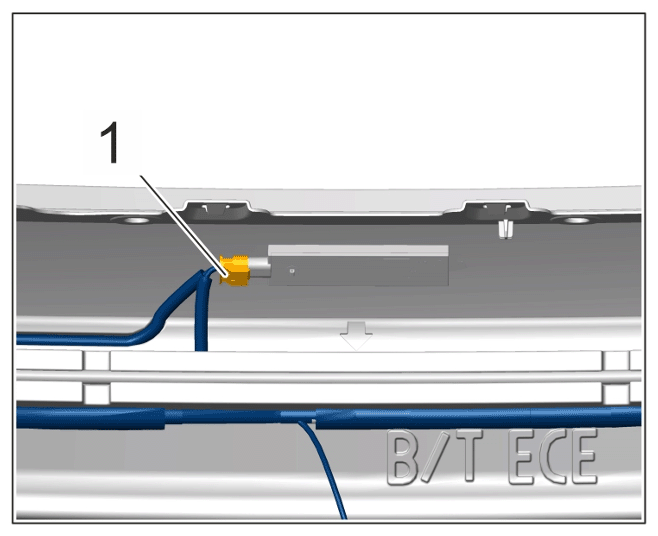

Release and disconnect electric plug connection -1- from front camera.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for front camera

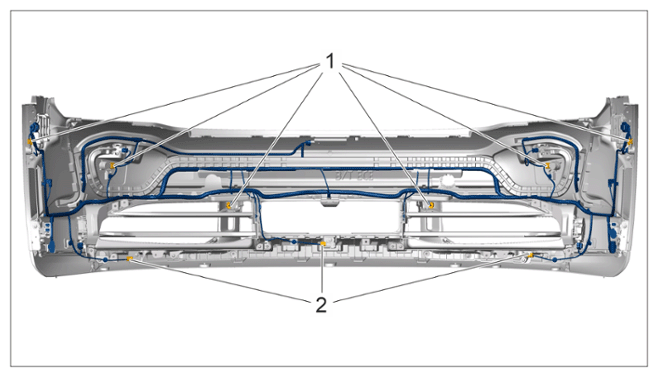

Release and disconnect electric plug connections for parking assist sensor -1- and electric plug connections for pedestrian safety sensor -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
Vehicles with KESSY/PAS only:

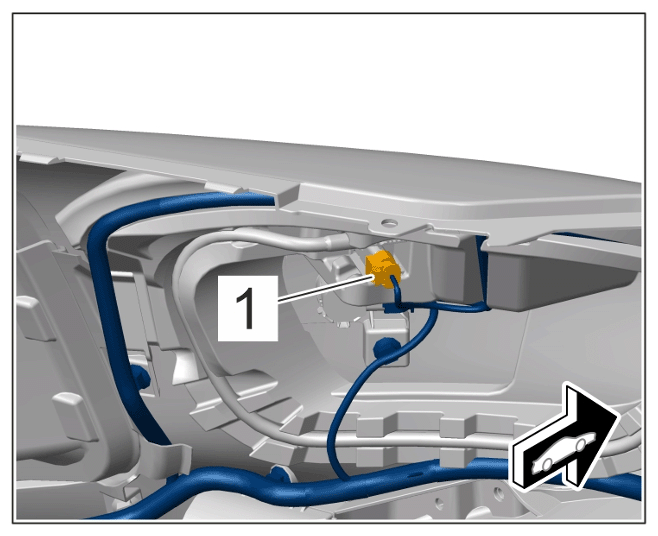

Release and disconnect electric plug connection for KESSY/PAS -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for KESSY/PAS

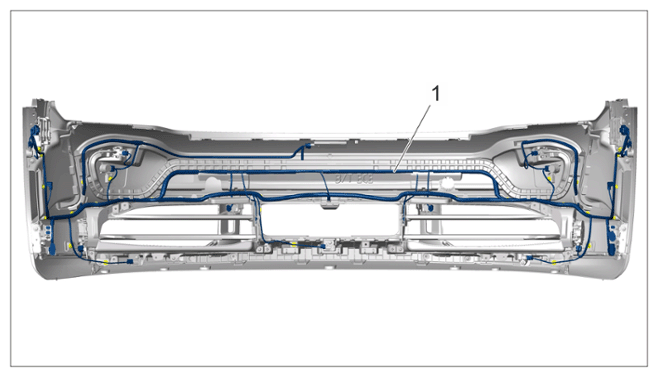

Unclip front wire harness -1- all the way around and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wire harness
