Removing Main Wire Harness Section For Tyre Pressure Monitoring

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

When cutting the wire harness, make sure there is enough length of cable left to join to the new lines.

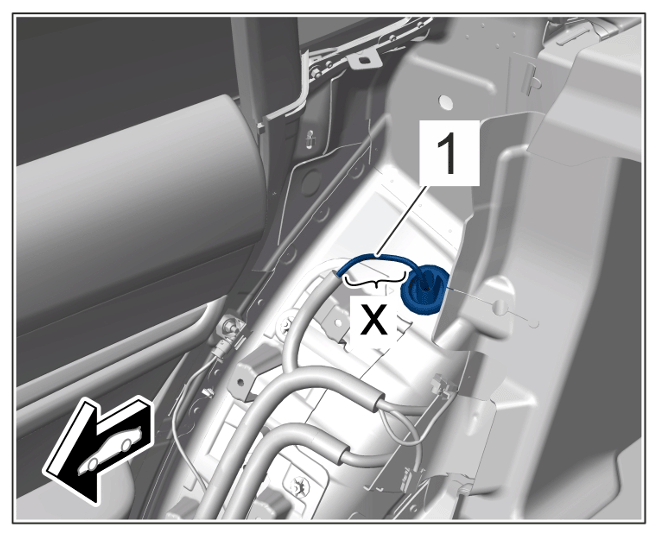

Cut main wire harness section for tire pressure monitoring -1- in area -x- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cut
Remove main wire harness section for tire pressure monitoring -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Main wire harness section for tire pressure monitoring

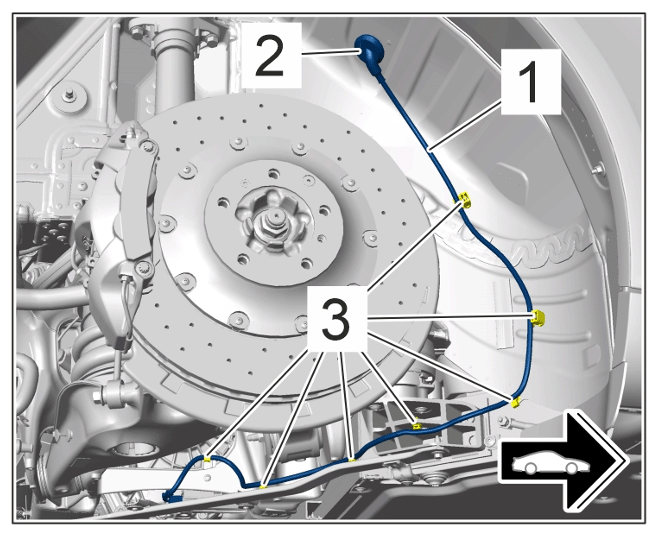

1. 2.1 Remove grommet -2- .
2. 2.2 Unclip clips -3- .
3. 2.3 Remove main wire harness section for tire pressure monitoring -1- .
