Installing Main Wire Harness Section For Tyre Pressure Monitoring

Information

Choose a place for the joint where there is enough space for connecting all the individual lines.

Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in the area of the joint.

Information

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and shrinking/insulating the electric lines.

The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be complied with and observed. The procedures are described in detail in the > VAS 1978/35-20 - Release Tool Set  .

Crimping samples must be prepared before beginning work.

Information

Allocation of lines - see wiring diagram.

1. Install main wire harness section for tire pressure monitoring -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

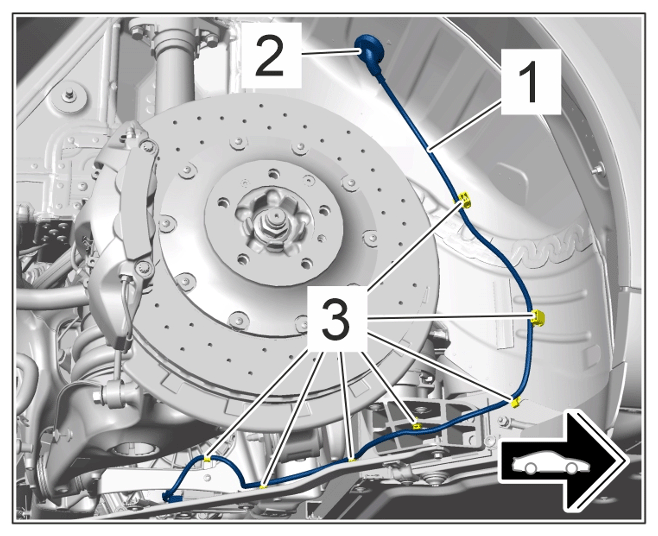

   Main wire harness section for tire pressure monitoring

   1. 1.1  Guide main wire harness section for tire pressure monitoring -1-  towards the passenger compartment and install grommet -2-  .
   2. 1.2  Route main wire harness section for tire pressure monitoring -1-  .
   3. 1.3  Fasten clips -3-  .

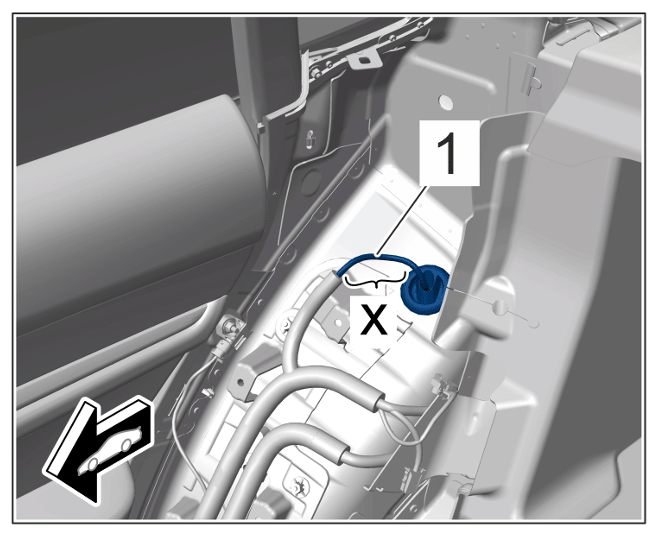

2. Crimp main wire harness section for tire pressure monitoring -1-  in area -x-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cut

   1. 2.1  Cut electric lines to different lengths (to allow for shrink-fit connections).
   2. 2.2  Slide shrink-fit hoses onto the lines.
   3. 2.3  Strip 10 mm of insulation off electric lines.
   4. 2.4  Crimp electric lines using crimping sleeves and > VAS 1978/1A - Crimping pliers  .
   5. 2.5  Slide shrink-fit hose over the crimp connections and carefully shrink it to make it watertight using the > VAS 1978/14A - Hot-Air Blower  .
   6. 2.6  Wrap commercially available PVC tape all around the area of the connection points.
