Removing Main Wire Harness On Rear Right Sub-Part

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch oft ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

When cutting the wire harness, make sure there is enough length of cable left to join to the new lines

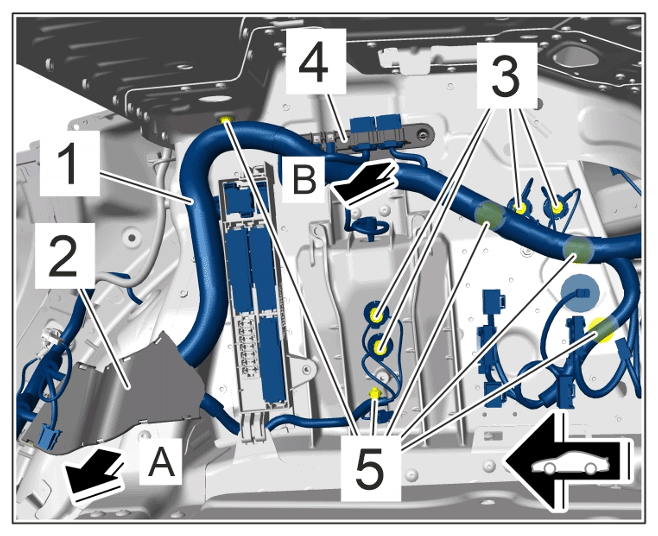

Loosen main wire harness on rear right sub-part -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Main wire harness on rear right sub-part
1. 1.1 Unclip cable duct -2- (-arrow A- ).
2. 1.2 Unscrew nuts on ground points at right C-pillar -3- .
3. 1.3 Unclip rear right connection points holder -4- (-arrow B- ).
4. 1.4 Unclip clips -5- .

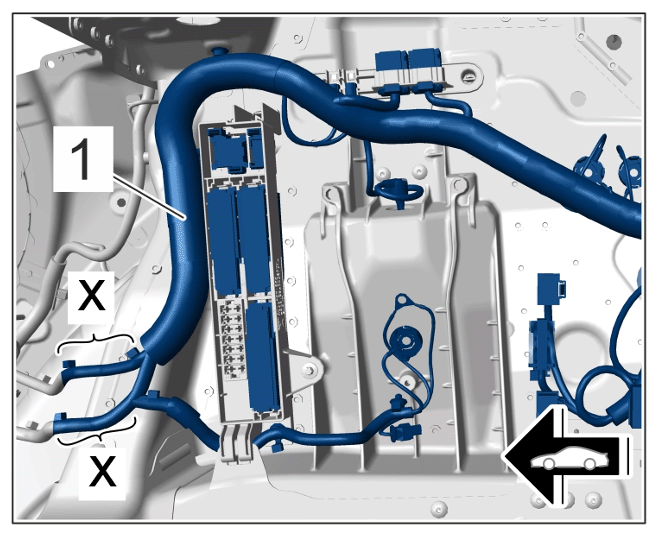

Cut main wire harness on rear right sub-part -1- in area -x- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separation points

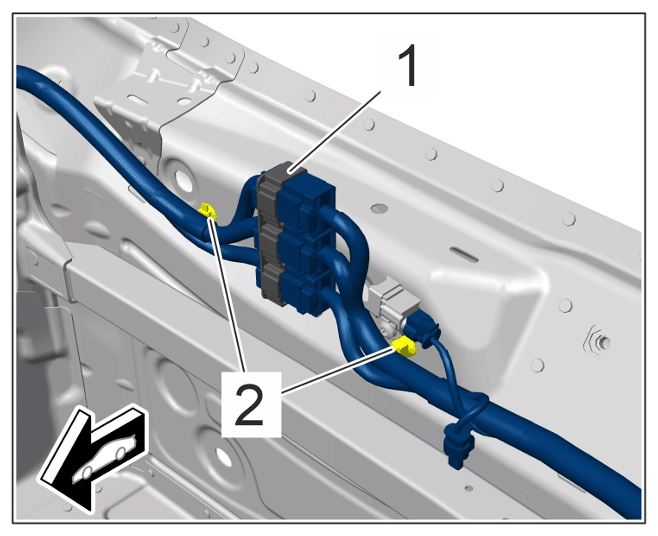

Unclip connection point holder for lock carrier -1- and clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection point holder for lock carrier holder
Release electric plug connections from the rear-differential lock control unit and disconnect.
> 397519 REMOVING AND INSTALLING CONTROL UNIT FOR REAR-DIFFERENTIAL LOCK

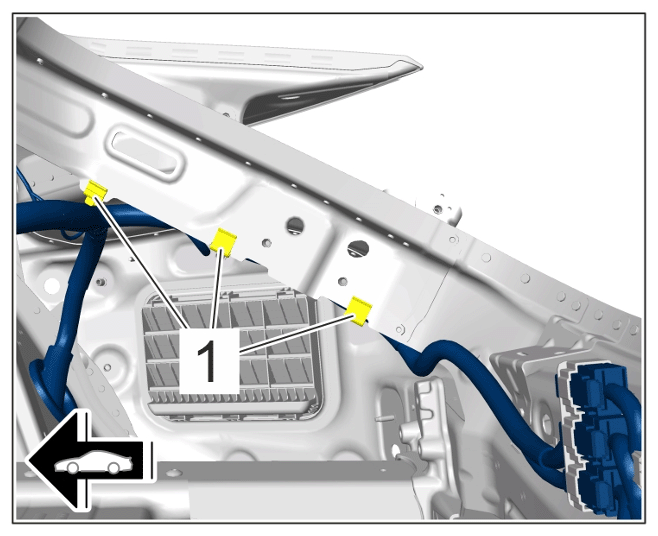

Unclip clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

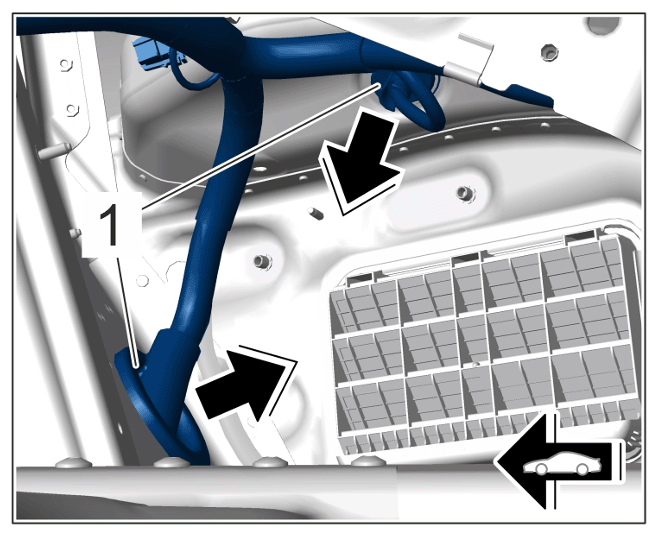

Guide grommets at rear right -1- out of body -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grommets at rear right
Remove main wire harness on sub-part for tire pressure monitoring.
> 970955 REPLACING MAIN WIRE HARNESS ON SUB-PART FOR TYRE PRESSURE MONITORING
Release and disconnect electric plug connections on rear-end electronics control unit.
> 578919 REMOVING AND INSTALLING CONTROL UNIT FOR REAR-END ELECTRONICS
Loosen rear fuse box.
> 978409 LOOSENING AND SECURING REAR FUSE BOX
