Removing Main Wire Harness On Front Right Sub-Part

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch oft ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

When cutting the wire harness, make sure there is enough length of cable left to join to the new lines

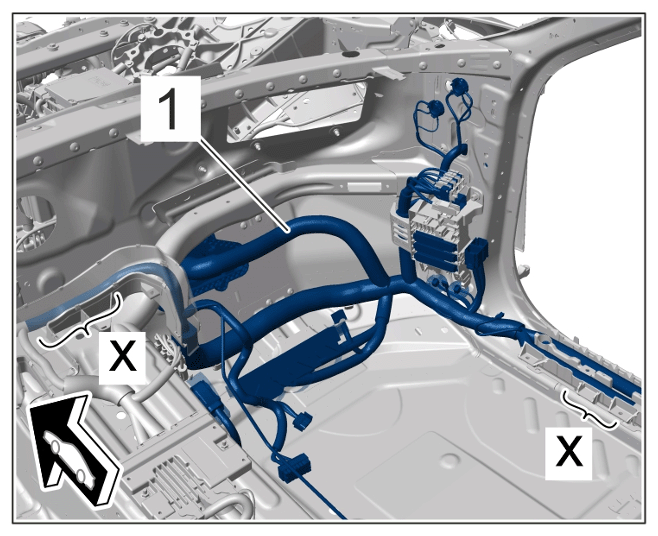

Cut main wire harness section for front lid at the right -1- in areas -x- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separation points
Release and disconnect electric plug connections for mobile phone antenna amplifier.
> 914519 REMOVING AND INSTALLING MOBILE PHONE ANTENNA AMPLIFIER
Loosen fuse box in right footwell.
> 978409 LOOSENING AND SECURING FUSE BOX IN THE FOOTWELL

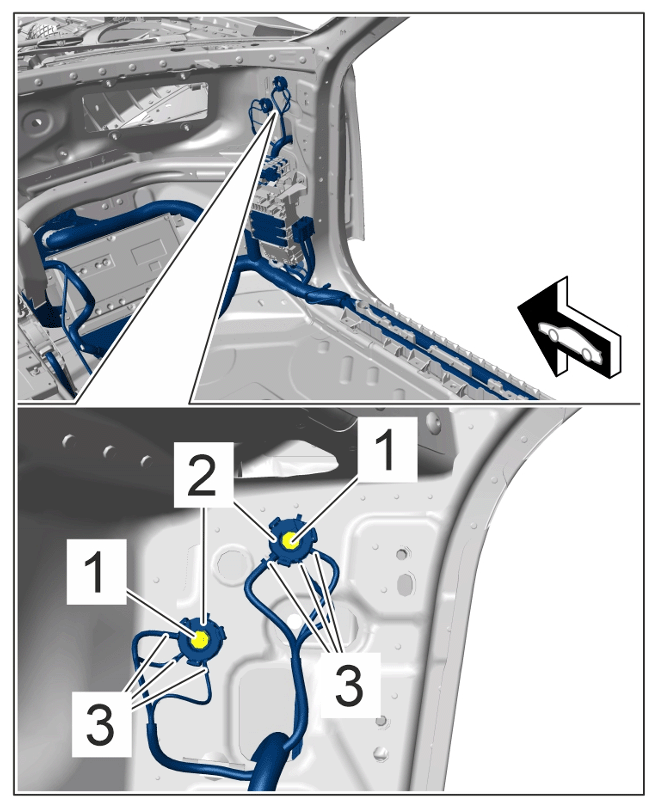

Unscrew nuts -1- at ground points on A-pillar -2- and remove ground lines -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground point on A-pillar
Disconnect electric wire harness for front door.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness for door, front

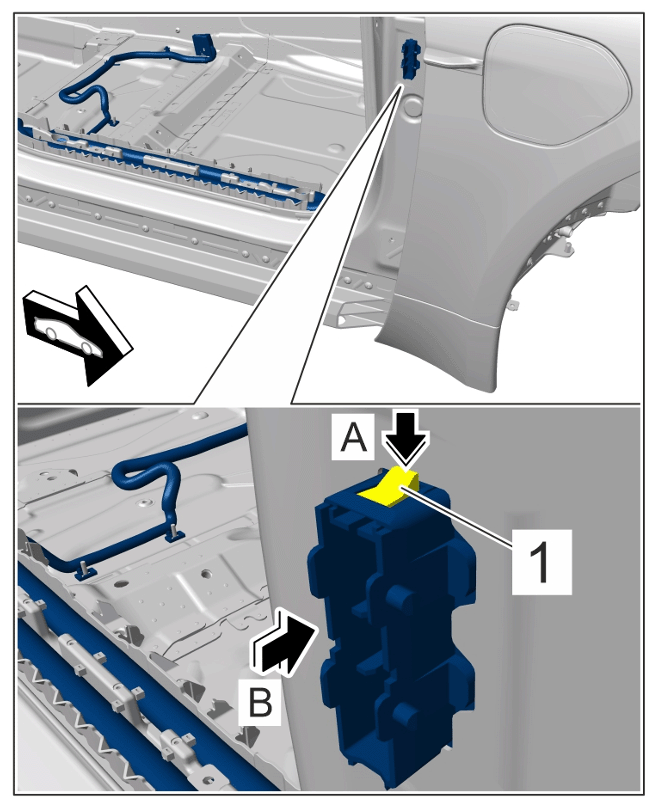

1. 5.1 Release -1- locking lug -arrow A- and unclip mounting housing -arrow B- .
2. 5.2 Guide electric wire harness for front door out of the A-pillar.
Remove loudspeaker booster.
> 914419 REMOVING AND INSTALLING BOSE LOUDSPEAKER BOOSTER

> 914419 REMOVING AND INSTALLING BURMESTER LOUDSPEAKER BOOSTER
Release and disconnect electric plug connections for assistance systems central control unit.
> 910219 REMOVING AND INSTALLING CENTRAL CONTROL UNIT FOR ASSISTANCE SYSTEMS

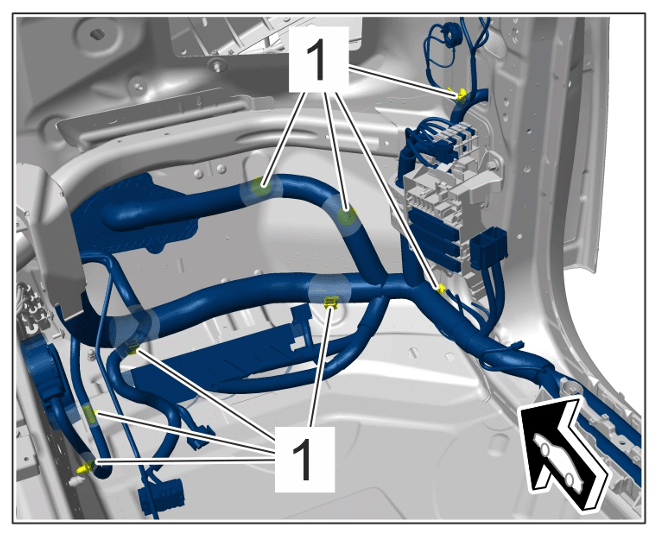

Unclip clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips
