Installing Main Wire Harness On Front Right Sub-Part

Information

Choose a place for the joint where there is enough space for connecting all the individual lines.

Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in the area of the joint.

Information

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and shrinking/insulating the electric lines.

The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be complied with and observed. The procedures are described in detail in the > VAS 1978/35-20 - Release Tool Set  .

Crimping samples must be prepared before beginning work.

Information

Allocation of lines - see wiring diagram.

1. Installation is performed in reverse order. Pay particular attention to the following:

   Tighten nut securing ground point of A-pillar to body with > Tightening torque 9.5 Nm (7 ftlb.)  .

   Electric plug connections must engage securely.

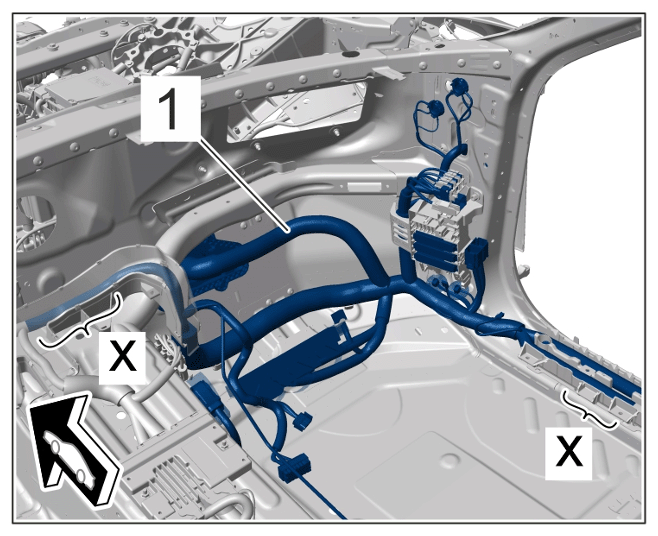

2. Crimp main wire harness section for front lid at the right -1-  in areas -x-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Separation points

   1. 2.1  Cut electric lines to different lengths (to allow for shrink-fit connections).
   2. 2.2  Slide shrink-fit hoses onto the lines.
   3. 2.3  Strip 10 mm of insulation off electric lines.
   4. 2.4  Crimp electric lines using crimping sleeves and > VAS 1978/1A - Crimping pliers  .
   5. 2.5  Slide shrink-fit hose over the crimp connections and carefully shrink it to make it watertight using the > VAS 1978/14A - Hot-Air Blower  .
   6. 2.6  Wrap commercially available PVC tape all around the area of the connection points.
