Removing Main Wire Harness For Tail Light

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

When cutting the wire harness, make sure there is enough length of cable left to join to the new lines.

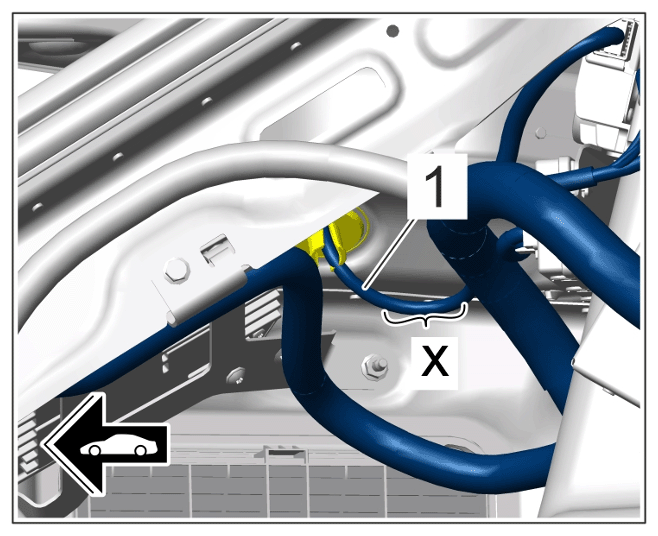

Cut off main wire harness for tail light -1- in area -x- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cut

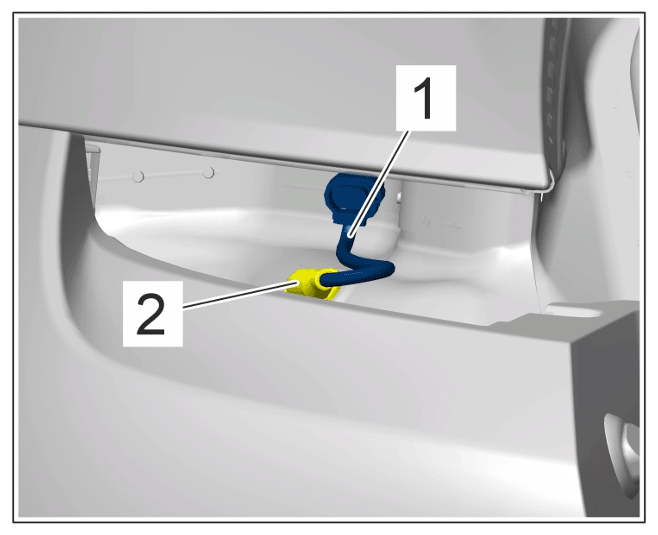

Remove rubber sleeve -2- and remove main wire harness for tail light -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber sleeve
