Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing grommet to body Item 3 Tightening torque 8 Nm (6 ftlb.)

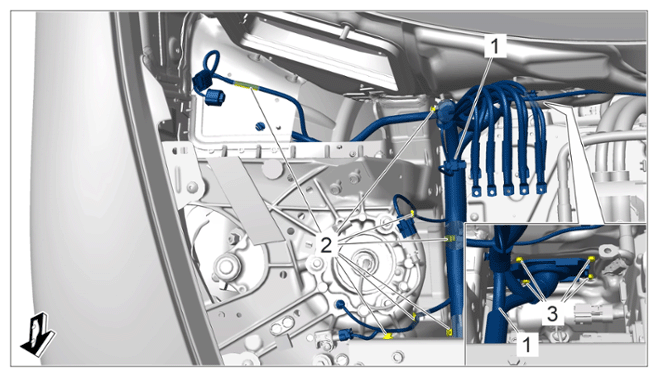

G15566884Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Main wire harness in right plenum panel area
