Technical Values

Location	Description	Type	Basic value

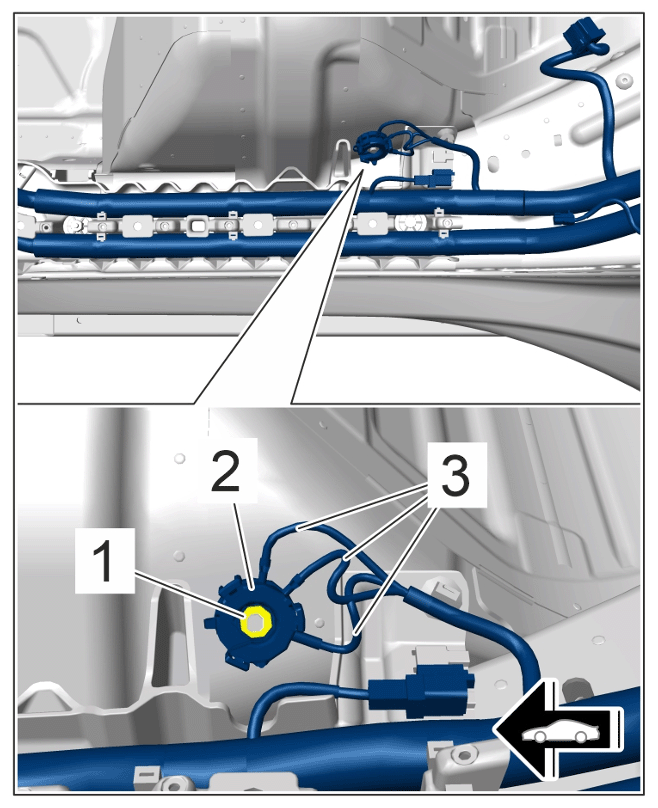

Nut securing ground point on cross member in seat well to body	Item 1	Tightening torque	9.5 Nm (7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground point on cross member in seat well

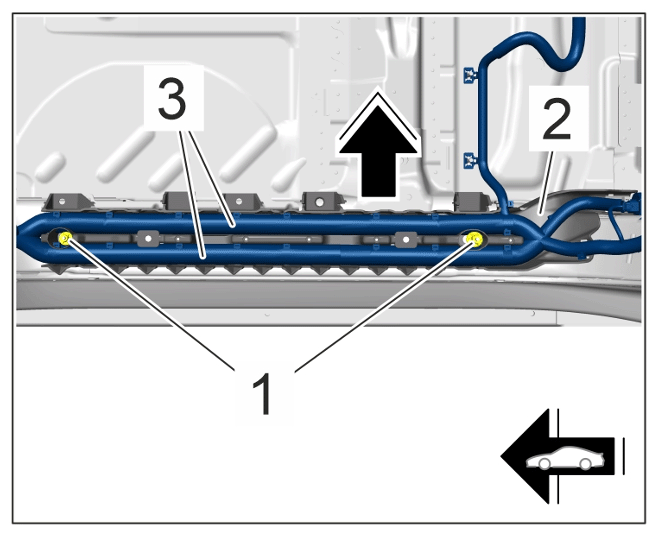

Nuts securing cable duct in rear door sill to body	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cable duct in rear door sill

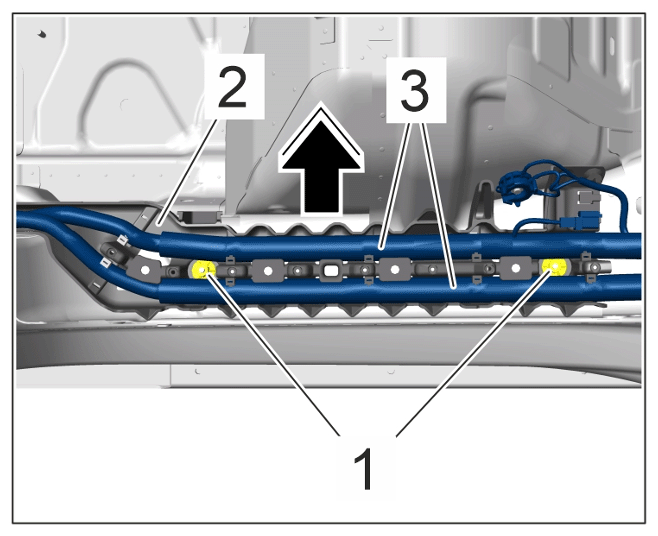

Nuts securing cable duct in front door sill to body	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cable duct in front door Sill

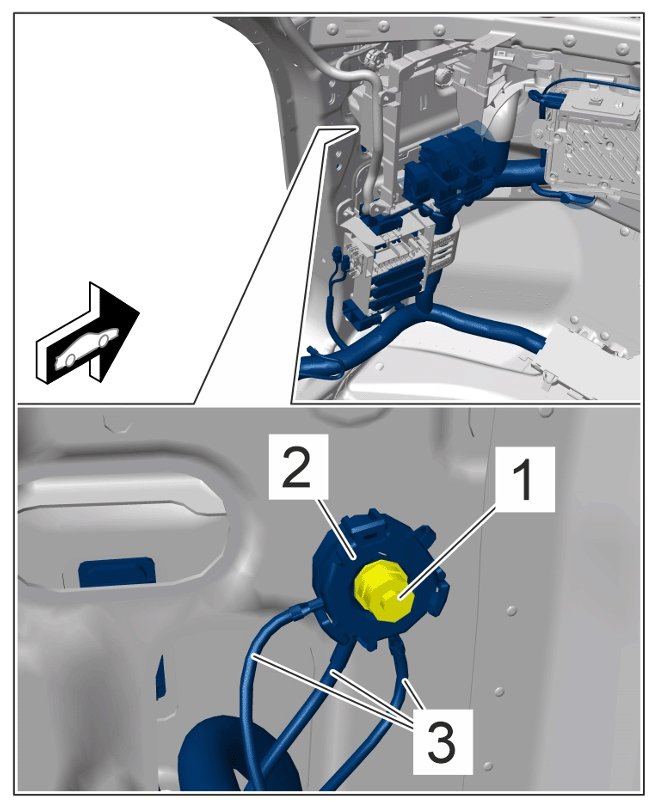

Nut securing ground point on A-pillar to body	Item 1	Tightening torque	9.5 Nm (7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground point, A-pillar

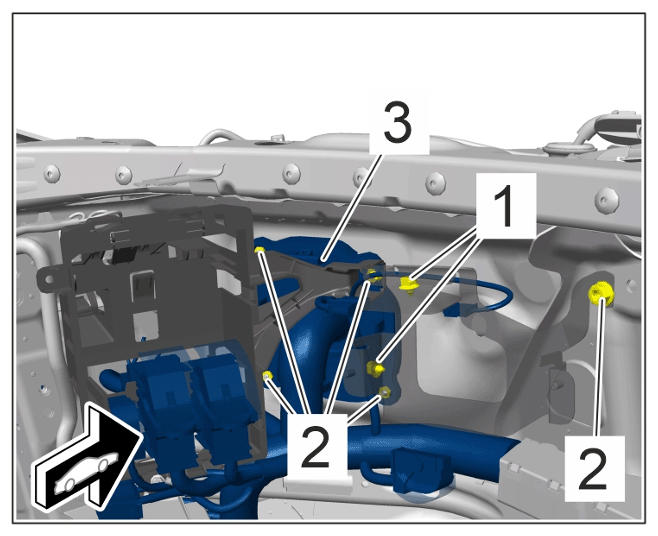

Nuts securing grommet to body	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Grommet
Nut securing holder to body	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder
