Removing Sun Visor

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

The terms "Ignition on" and "Starting engine" are re-defined for fully electric vehicles (battery electric vehicles - BEV).

Establishing operational readiness/Ignition on:

Prerequisites for establishing operational readiness: High-voltage battery is sufficiently charged, remove vehicle charging cable from the vehicle charge port, put driver's key in the emergency start tray.

Establishing operational readiness automatically: Get into the vehicle and close the driver's door. The driver's key is recognized inside the vehicle. Operational readiness is established.

Establishing operational readiness manually: Press Start/Stop switch. The driver's key is recognized inside the vehicle. Operational readiness is established.

Establishing operational readiness/Starting engine:

Establish operational readiness and engage transmission range. The vehicle is now ready to drive and can be moved.

Ending operational readiness/Switching off ignition

Ending operational readiness automatically: Get out of the vehicle with the driver's key and close the driver door. The driver's key is no longer detected outside the vehicle. Operational readiness ends.

Ending operational readiness manually: Press Start/Stop switch until the instrument cluster is switched off.

Ending driving readiness/Stopping engine

Vehicle is stationary: Press the P button on the instrument cluster. The vehicle is parked.

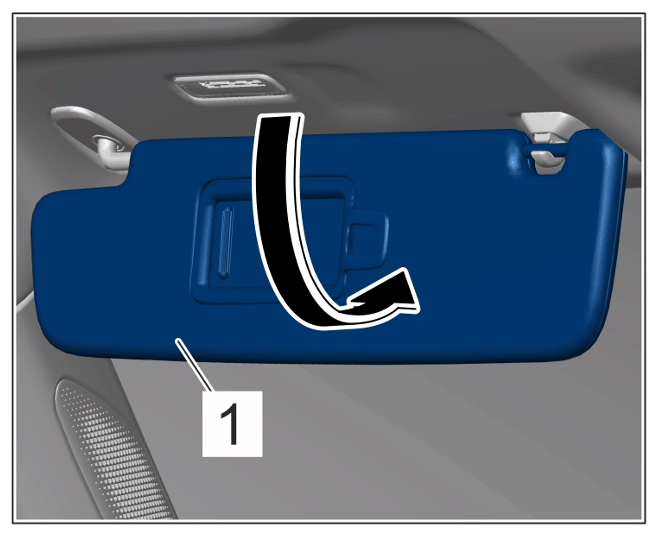

Fold down sun visor -1- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor

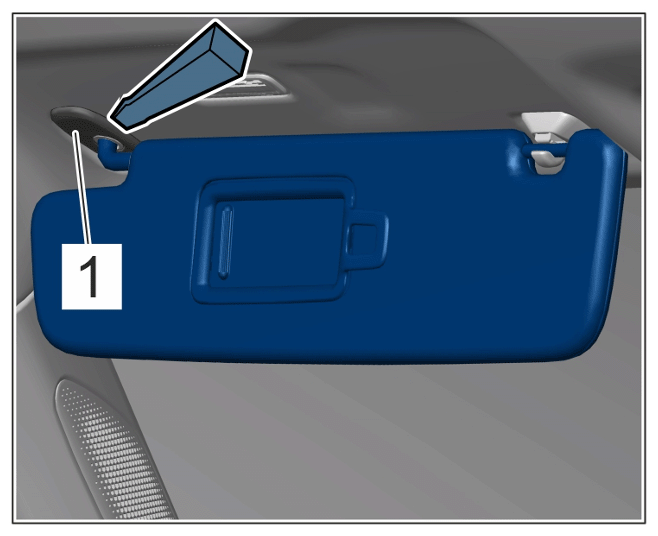

Unclip cover on outer bearing -1- using a plastic wedge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on outer bearing

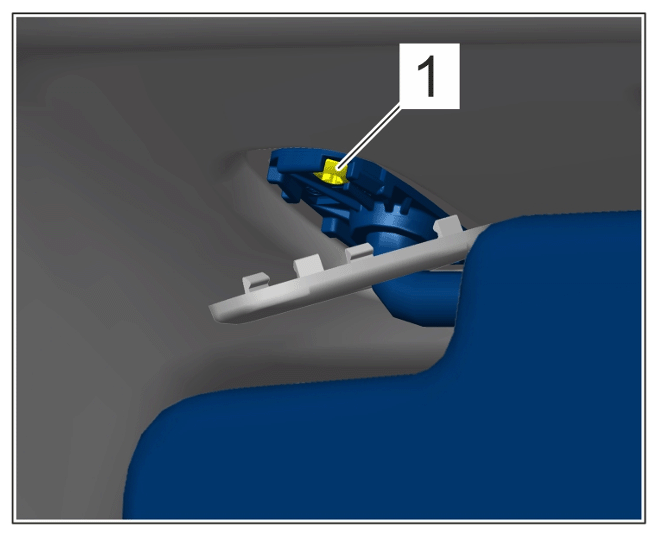

Unscrew screw on outer bearing for sun visor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on outer bearing for sun visor

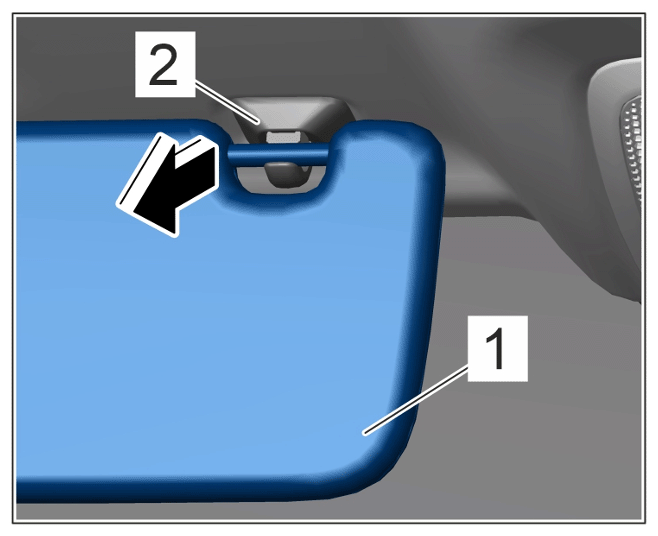

Unclip sun visor -1- from the inner bearing -2- and guide sun visor -1- out of the headliner until the electric plug connection is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner bearing

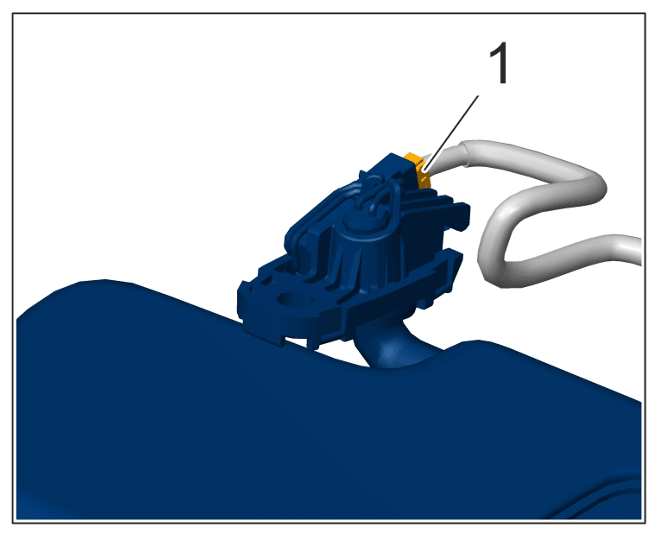

Release and disconnect electric plug connection for sun visor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for sun visor

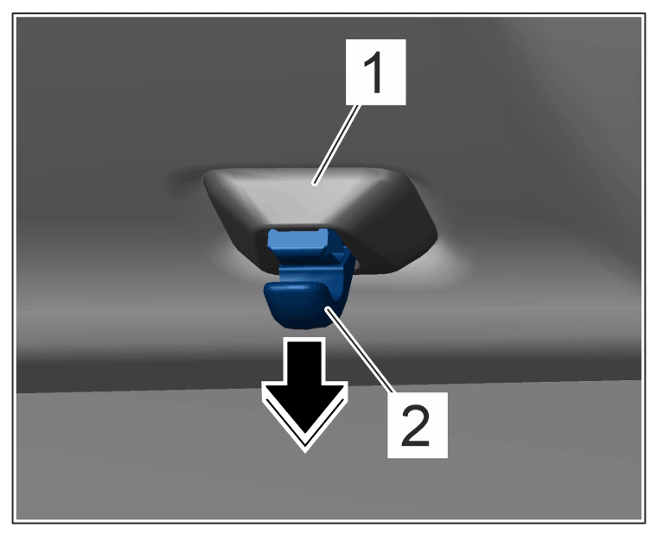

Unclip cover on inner bearing -1- using a plastic wedge and guide out the inner bearing -2- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on inner bearing
