Removing Console

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

Information

Shown on left side only; right side identical.

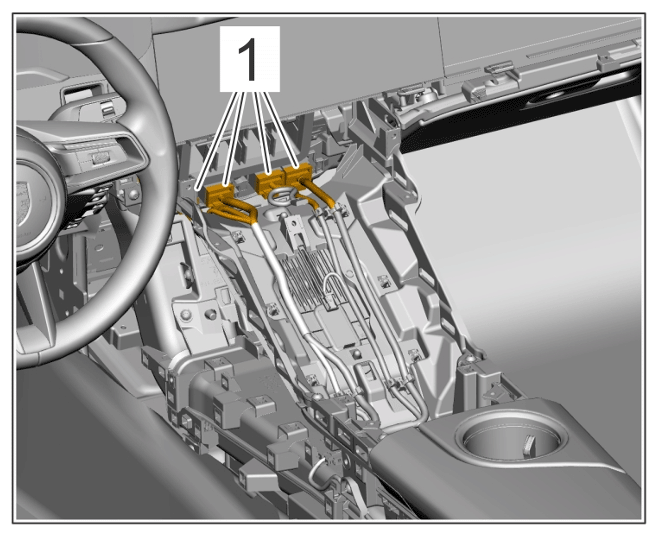

1. Release electric plug connections -1-  and disconnect them.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

2. Release console.
   1. 2.1 Flap the floor covering to a side and unscrew screws -1, 2, 3 and 4-  .
      Fig 1: Console Screws Loosening Sequence

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws

   2. 2.2 Disconnect wire harness from the console -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Console wiring harness

   1. 2.2.1 Release electric plug connections -2-  and disconnect them.
   2. 2.2.2 Loosen wiring harness at position -3-  .
3. Remove -1-  console. -Arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Console
