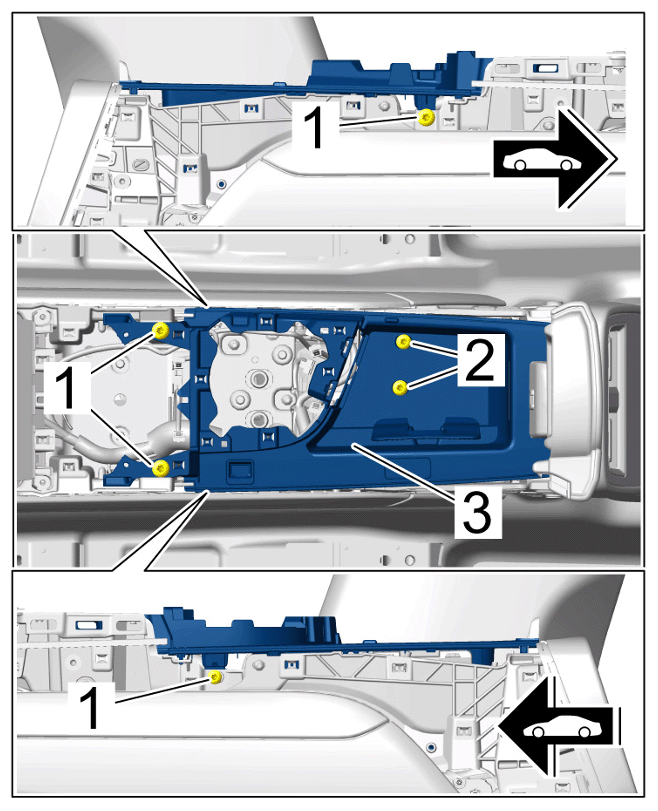

| Screws securing oddments tray to center console |
Item 1 |
Tightening torque |
3 Nm (2 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
| Screws under lining mat on oddments tray |
Item 2 |
Tightening torque |
7.5 Nm (5.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
