Removing (Front) Inner Door Sill Trim

Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

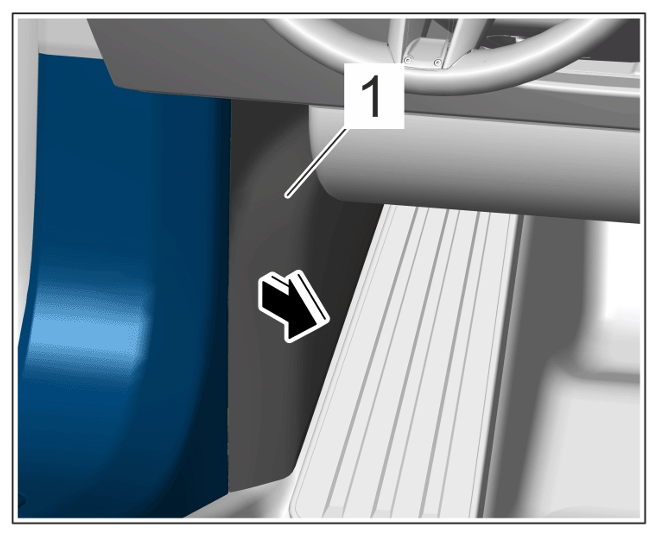

1. Unclip cover -1-  and remove it -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

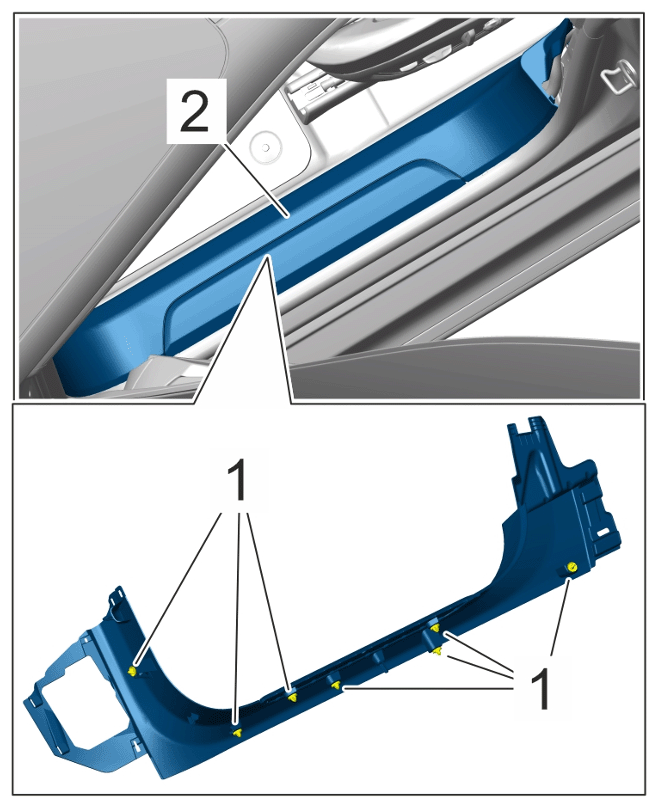

2. Loosen clips -1-  using a suitable tool and lift (front) inner door sill trim -2-  until the electric plug connection is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clips

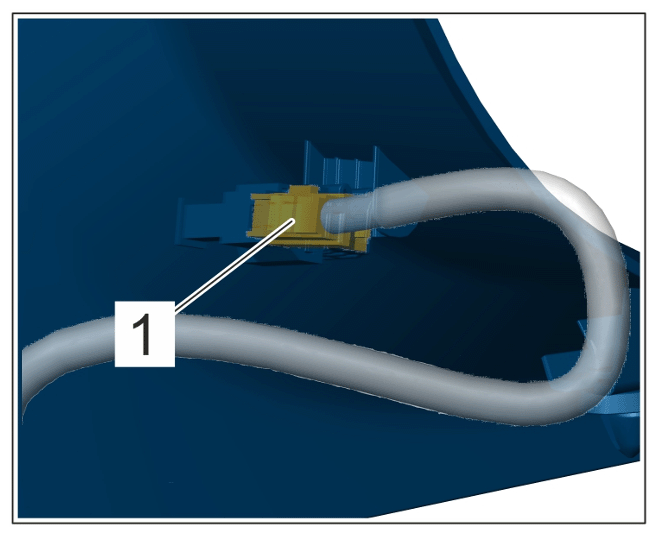

3. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

4. Remove (front) inner door sill trim.
