Removing (Rear) Inner Door Sill Trim

  1. Loosen clips -1-  and pull out inner door sill trim (rear) -2-  until the electric plug connection can be reached.

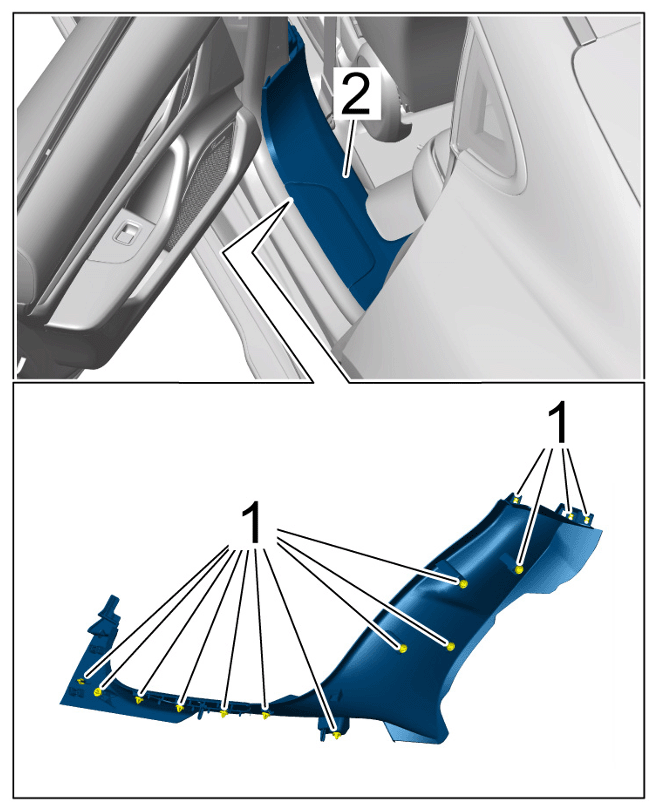

    G15564450Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips

  2. Release and unplug electric plug connection -1-  .

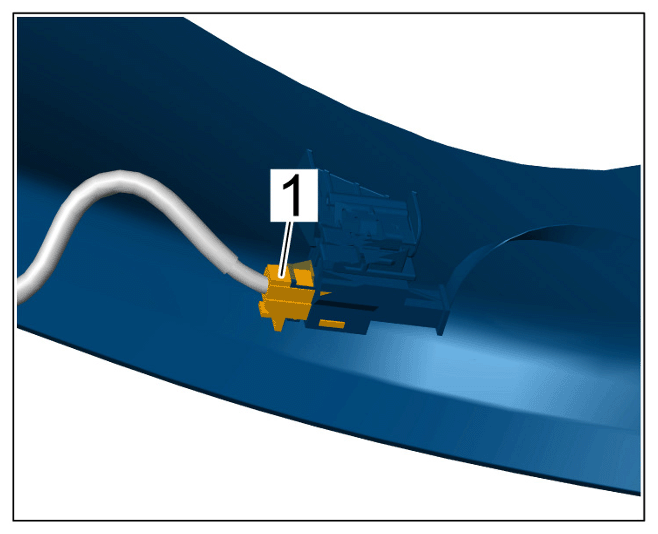

    G15564451Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  3. Remove inner door sill trim (rear).
