Assembling Shock Absorber

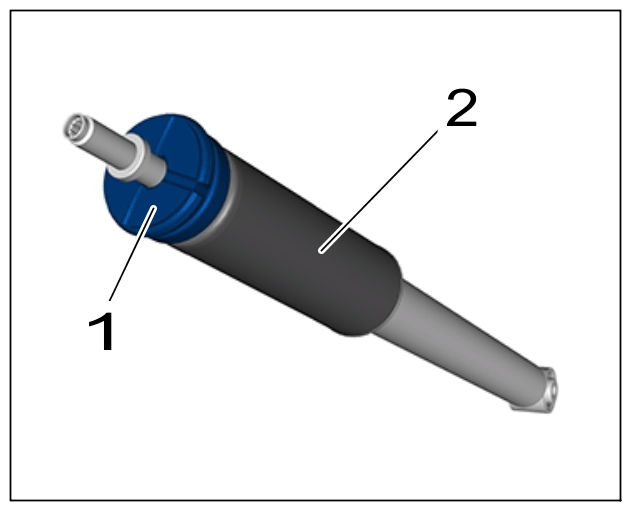

  1. Fit stop buffer -1-  and protective sleeve -2-  .
    1. 1.1  Fit protective sleeve -2-  on stop buffer -1-  .
    2. 1.2  Slide stop -1-  buffer with protective sleeve -2-  onto piston rod.
      G15553087Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Stop buffer and protective sleeve

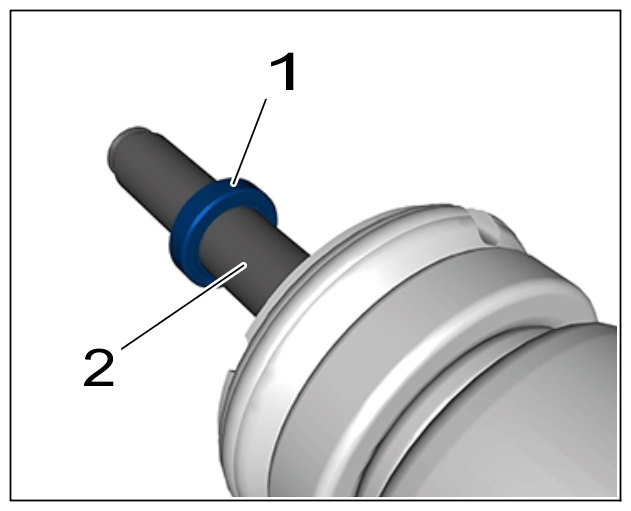

  2. Slide supporting washer -1-  onto piston rod -2-  and check that the cut-out in the supporting washer is positioned correctly in relation to the piston rod.
    G15553088Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Support washer

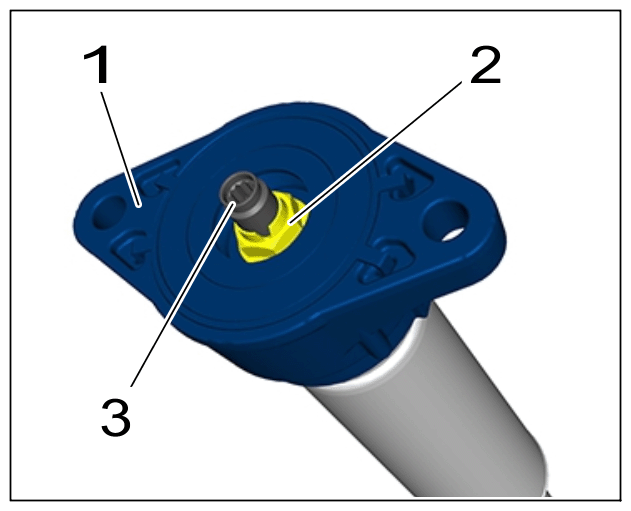

  3. Fit shock absorber mounting -1-  .
    1. 3.1  Slide the shock absorber mounting -1-  onto the piston rod -3-  as far as the support washer stop.
    2. 3.2  Screw on the nut -2-  and tighten using > T10001 - shock absorber set  while at the same time holding back the multiple-tooth screw of the piston rod -3-  .

      > Tightening torque 53 Nm (39.1 ftlb.)

      G15553089Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Shock absorber mounting
