Component Overview

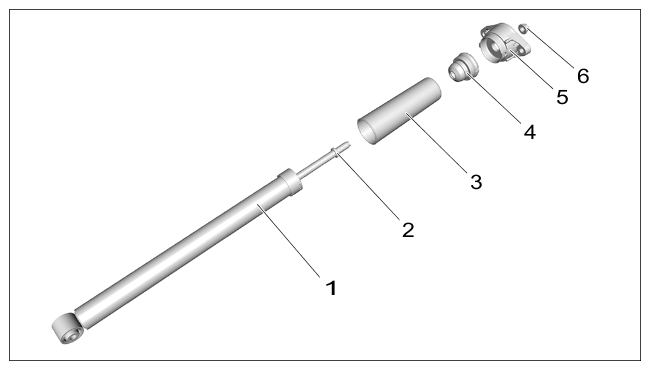

Fig 1: Overview Of Shock Absorber Components Location
G15553083Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview

1  Spring damper
2  Support washer
3  Boot
4  Rubber stop
5  Shock absorber mounting
6  Nut
