Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Shock absorber/spring damper rear to body Screws M10 X 42/Item 2 Tightening torque 46 Nm (33.9 ftlb.)

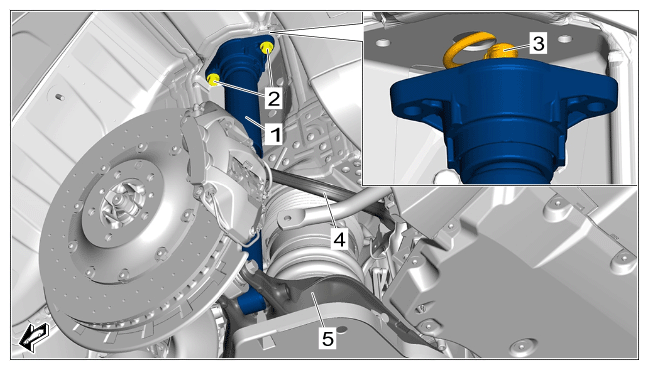

G15553076Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shock absorber/spring damper rear
