Install Rear Shock Absorber

Information

Recommendation for workshops replacing shock absorbers/spring dampers:

• Dampers can be replaced separately up to a mileage of 20, 000 mls (30, 00 0 km) or 3 years  .
• If the mileage is > 20, 000 miles (30, 000 km) or the components are more than 3 years old, we recommend replacing them in pairs  .

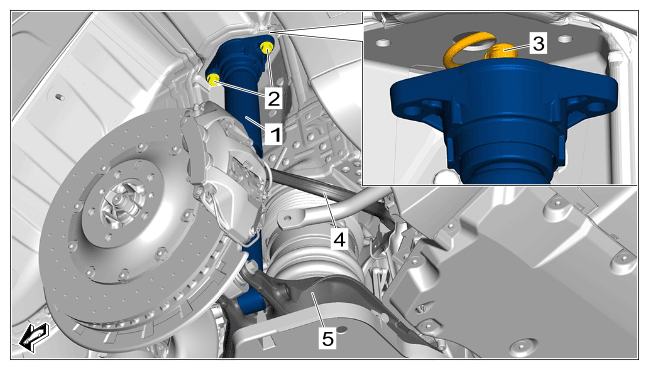

1. Install rear shock absorber -1-  .
   1. 1.1  Insert rear shock absorber -1-  between rear upper trailing arm -4-  and lower trailing arm -5-  and position it.
   2. 1.2  Connect and lock electric plug connection -3-  .
   3. 1.3  Screw in and tighten screws -2-  .

      > Tightening torque 46 Nm (33.9 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear shock absorber
