Installing Connecting Link For Anti-Roll Bar
- Risk of crushing
- Risk of damage to components
→ Wear personal protective gear.
→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).
- Danger of limbs being trapped
→ Switch off electric power to drive motor.
→ Make sure it does not switch on again.
→ Check that there is no electric charge.
Information
The pictures shown in this document may differ from the original.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.
Information
Once PDCC is ready for operation, chassis adjustments can be made. To avoid injury/crushing, only work near the anti-roll bar, lower trailing arms and bellows of the steering gear without establishing operational readiness and always allow for the run-on time of 60 seconds.
Information
Threaded joints must only be tightened in zero position to prevent warping in the bearing:

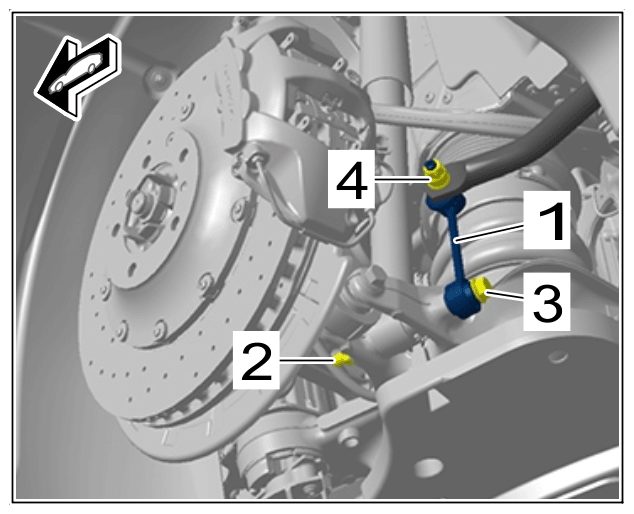

- Install connecting link for anti-roll bar -1- .
- Lift the wheel bearing housing as far as required using lifting equipment (e.g. > VAS 6931 - Transmission and Engine Jack
) until the lower trailing arm is horizontal.
Zero position
- Secure connecting link for anti-roll bar -1-
.
- 3.1
Tighten nut -2-
and counter at screw -3-
.
> Tightening torque 70 Nm
> Torque angle + 180 °
- 3.2
Tighten nut -4-
and counter at the internal Torx of the threaded pin at the same time.
Conventional vehicles (M10):
> Tightening torque 30 Nm (22 ftlb.)
> Torque angle + 45 °
Vehicles With PDCC (M12):
> Tightening torque 50 Nm (37 ftlb.)
> Torque angle + 45 °
Connecting link for anti-roll bar
- 3.1
Tighten nut -2-
and counter at screw -3-
.
