Technical Values

Location	Description	Type	Basic value
Nut securing ground line for rear axle steering to body	Item 2	Tightening torque	4.5 Nm (3.25 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line

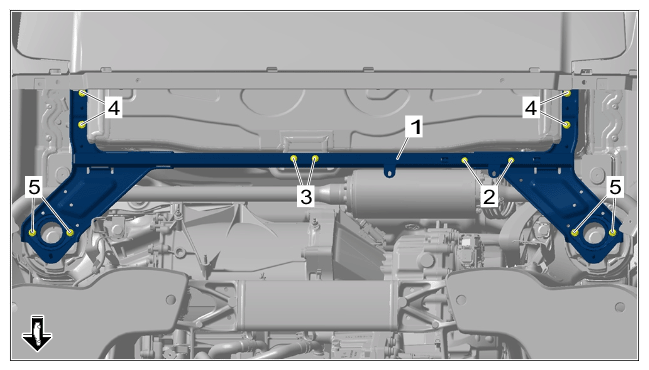

Screw securing strut to body	Item 5	Tightening torque	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
Nut securing strut to body	Item 4	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut
Screw securing strut to body	Item 3	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut

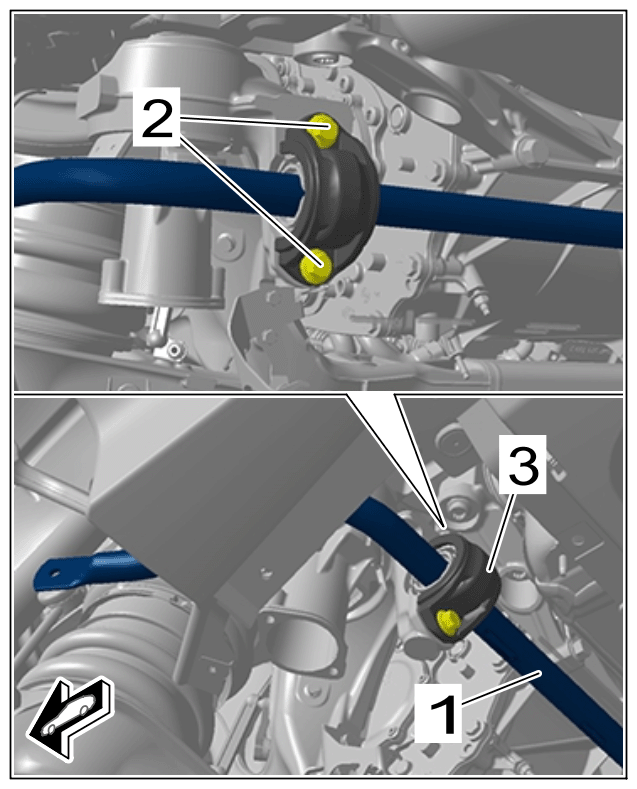

Anti-roll bar clamps on rear axle housing	Initial tightening/Screws/Item 2/Always replace screws following removal.	Tightening torque	50 Nm (37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar
Anti-roll bar clamps on rear axle housing	Final tightening/Screws/Item 2/Always replace screws following removal.	Torque angle	+ 45 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Anti-roll bar
