Subsequent Work

Install connecting links for anti-roll bar.
> 429119 REMOVING AND INSTALLING CONNECTING LINK FOR ANTI-ROLL BAR

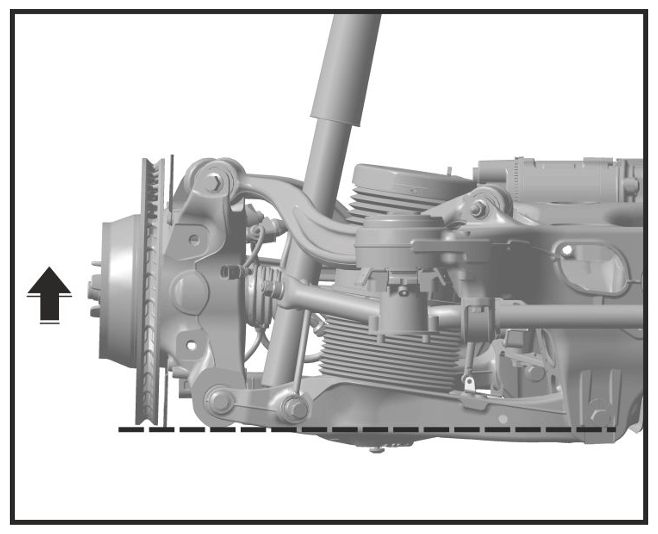

Lift the wheel bearing housing as far as required using lifting equipment (e.g. > VAS 6931 - Transmission and Engine Jack ) until the lower trailing arm is horizontal.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Zero position

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

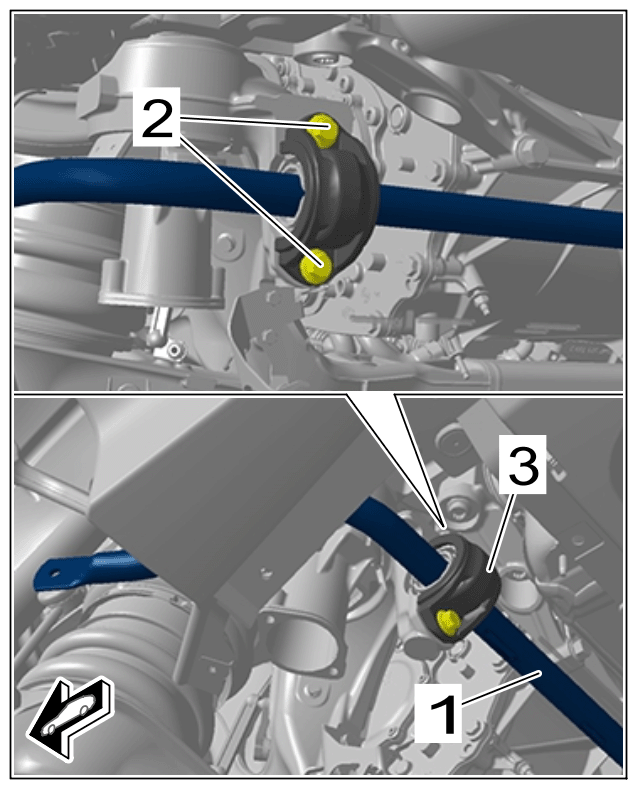

Tighten screws -2- .
> Tightening torque 50 Nm (37 ftlb.)

> Torque angle + 45 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Anti-roll bar
Install the pressure reservoir.
> 438219 REMOVING AND INSTALLING PRESSURE ACCUMULATOR
Install compressor.
> 431519 REMOVING AND INSTALLING COMPRESSOR
