Removing Anti-Roll Bar

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

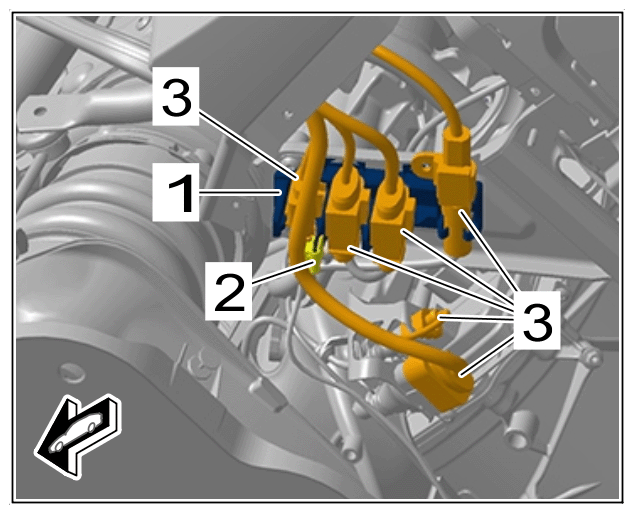

1. Remove line bucket -1-  .
   1. 1.1  Unclip clip -2-  .
   2. 1.2  Release and disconnect electric plug connections -3-  .
   3. 1.3  Unclip line bracket -1-  and remove.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Line bracket

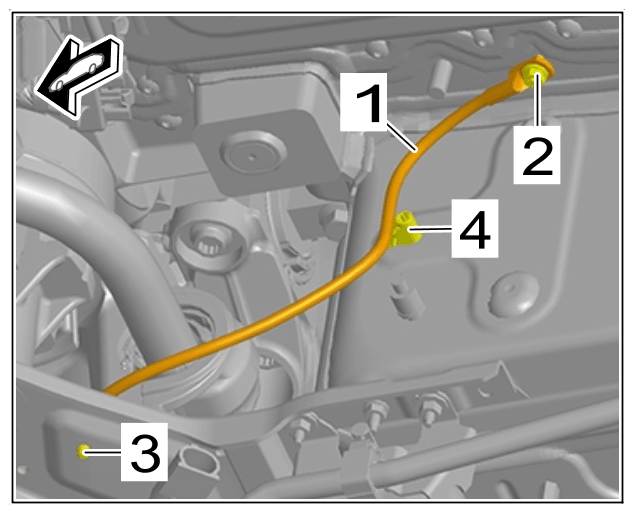

2. Disconnect ground line -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground line

   1. 2.1  Screw off nut -2-  .
   2. 2.2  Unclip clips -2 and 3-  .
   3. 2.3  Move ground line -1-  aside.

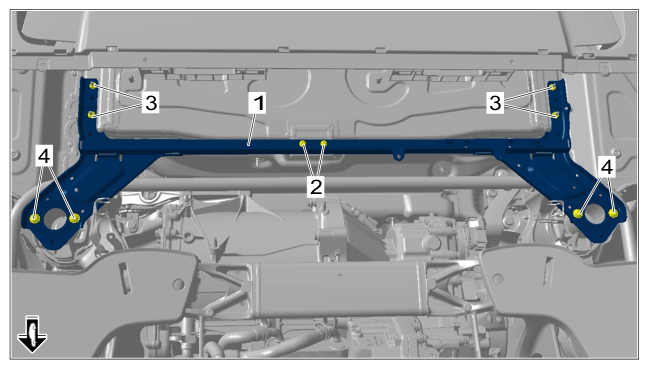

3. Remove strut -1-  .
   1. 3.1  Unscrew and remove screws -2-  .
   2. 3.2  Unscrew nuts -3-  .
   3. 3.3  Unscrew screws -4-  and remove support -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Strut

      Information

      The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

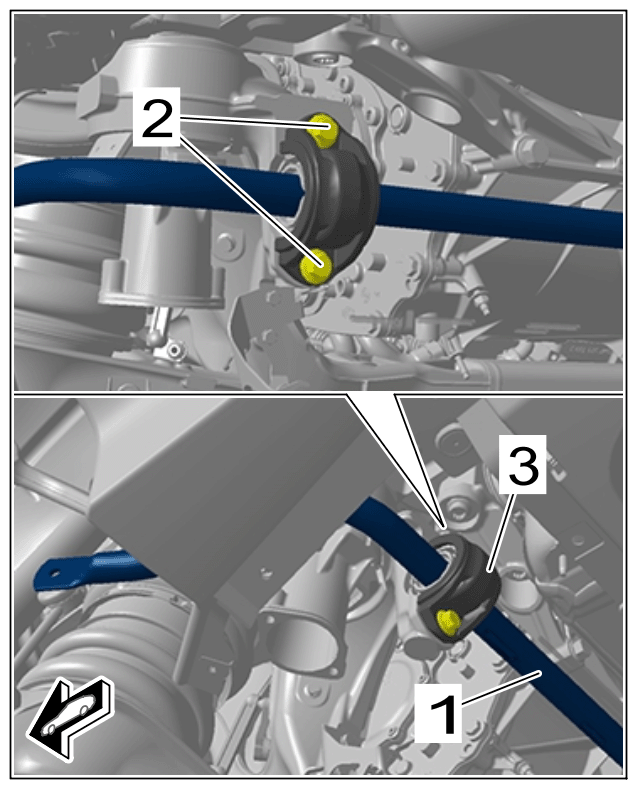

4. Remove anti-roll bar -1-  .
   1. 4.1  Unscrew and remove screws -2-  .

      Replace screws.

   2. 4.2  Remove anti-roll bar clamps -3-  .
   3. 4.3  Guide anti-roll bar -1-  down out of the vehicle.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Anti-roll bar
