Installing Anti-Roll Bar

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

Information

Threaded joints must only be tightened in zero position to prevent warping in the bearings.

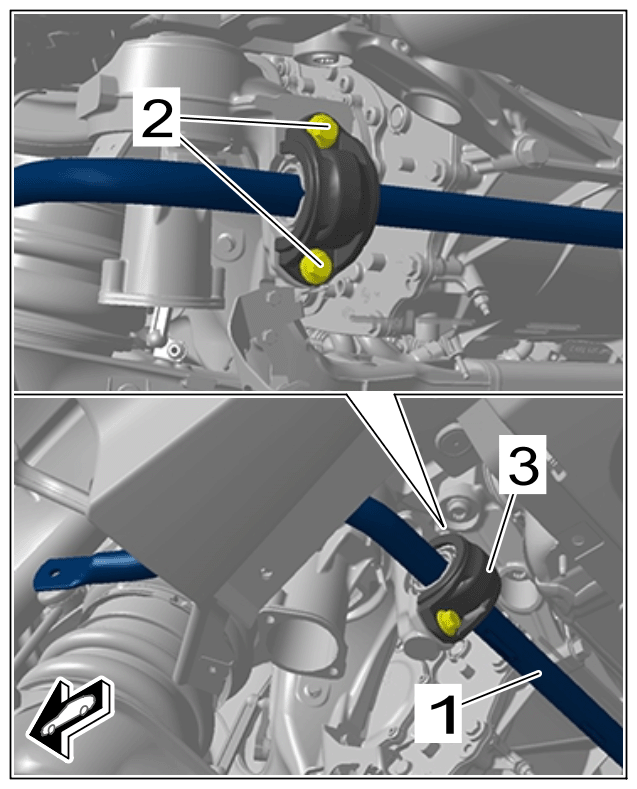

1. Install -1-  anti-roll bar
   1. 1.1  Position anti-roll bar -1-  .
   2. 1.2  Position anti-roll bar clamps -3-  , fit new  screws -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Anti-roll bar

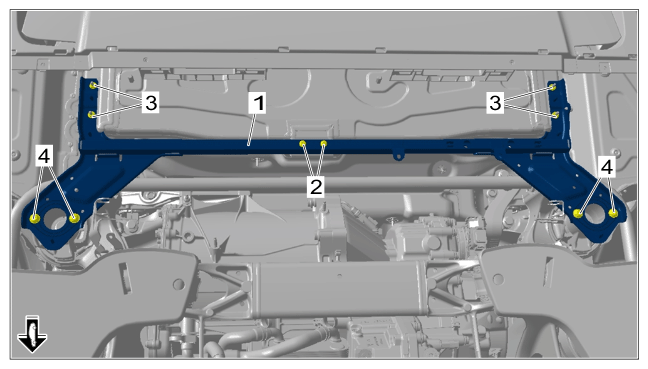

2. Install strut -1-  .
   1. 2.1  Position strut -1-  .
   2. 2.2  Fit and tighten screws -4-  .

      > Tightening torque 30 Nm (22 ftlb.)

   3. 2.3  Fit and tighten nuts -3-  .

      > Tightening torque 10 Nm (7.5 ftlb.)

   4. 2.4  Fit and tighten screws -2-  .

      > Tightening torque 10 Nm (7.5 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Strut

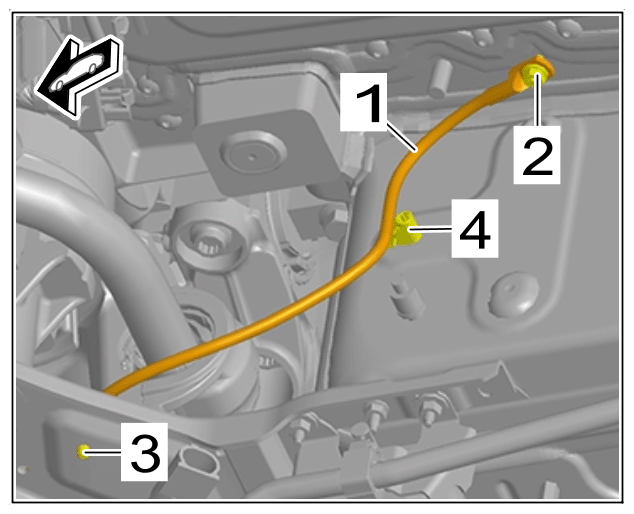

3. Secure ground line -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground line

   1. 3.1  Position ground line -1-  .
   2. 3.2  Screw on and tighten nut -2-  .

      > Tightening torque 4.5 Nm (3.25 ftlb.)

   3. 3.3  Clip in clips -2 and 3-  .

      Information

      The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

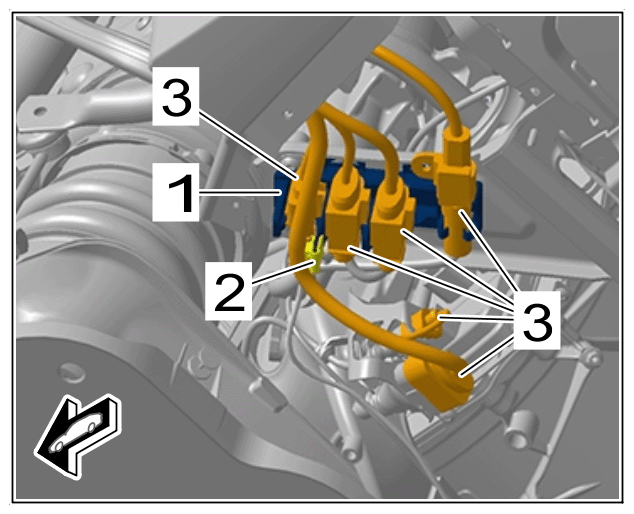

4. Install line bracket -1-  .

   Clip in line bracket -1-  .

   1. 4.1
   2. 4.2  Connect and lock electric plug connections -3-  .
   3. 4.3  Clip in clip -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Line bracket
