Subsequent Work

Install connecting links for anti-roll bar.
> 429119 REMOVING AND INSTALLING CONNECTING LINK FOR ANTI-ROLL BAR

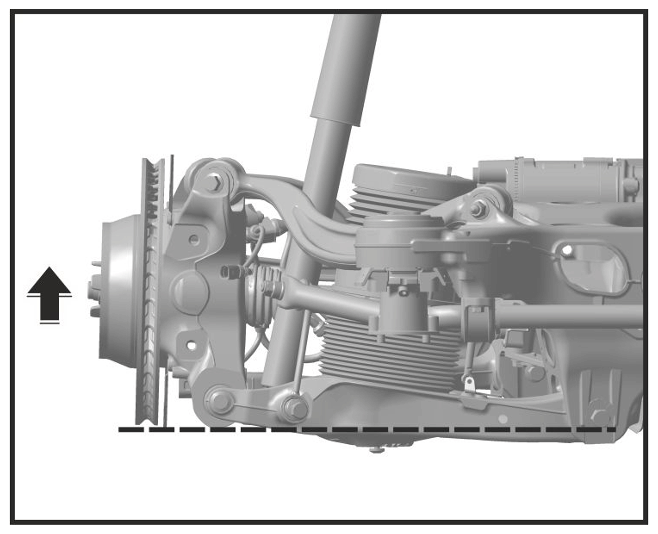

Lift the wheel bearing housing as far as required using lifting equipment (e.g. > VAS 6931 - Transmission and Engine Jack) until the lower trailing arm is horizontal.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Zero position
Tighten screws -3- .
> Tightening torque 50 Nm (37 ftlb.)

> Torque angle + 45 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

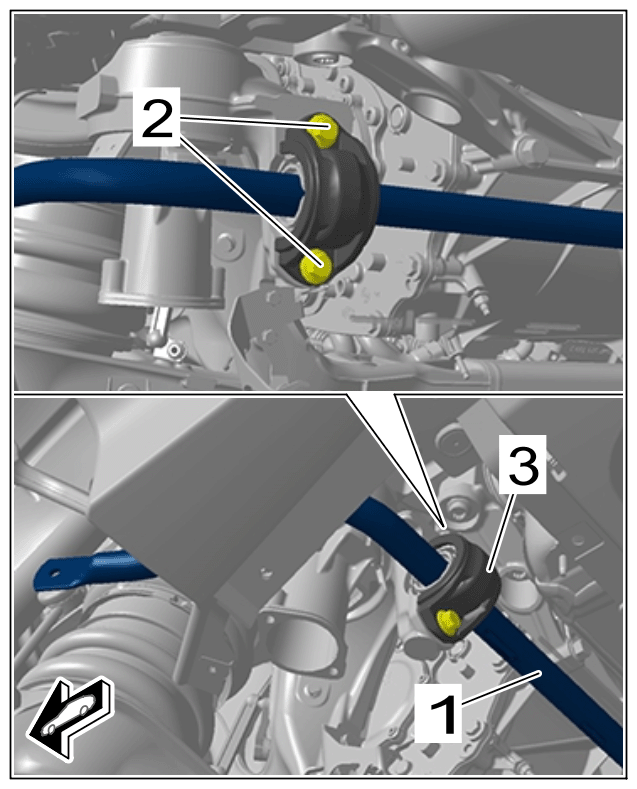

Anti-roll bar (PDCC), right side
Tighten screws -2- .
> Tightening torque 50 Nm (37 ftlb.)

> Torque angle + 45 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

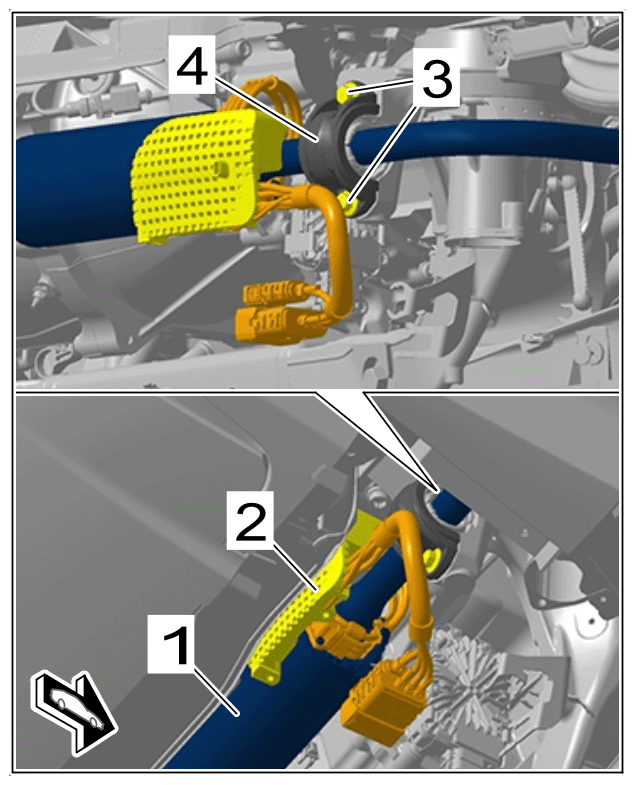

Anti-roll bar (PDCC), left side
Install PDCC control unit.
> 430819 REMOVING AND INSTALLING PDCC CONTROL UNIT
Install pressure accumulator.
> 438219 REMOVING AND INSTALLING PRESSURE ACCUMULATOR
Install compressor.
> 431519 REMOVING AND INSTALLING COMPRESSOR
