Installing Anti-Roll Bar (PDCC)

Information

Threaded joints must only be tightened in zero position to prevent warping in the bearings.

1. Install anti-roll bar (PDCC).
   1. 1.1  Position anti-roll bar (PDCC) -1-  .
   2. 1.2  Position anti-roll bar clamp -4-  and fit new  screws -3-  .
   3. 1.3  Fit holder -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

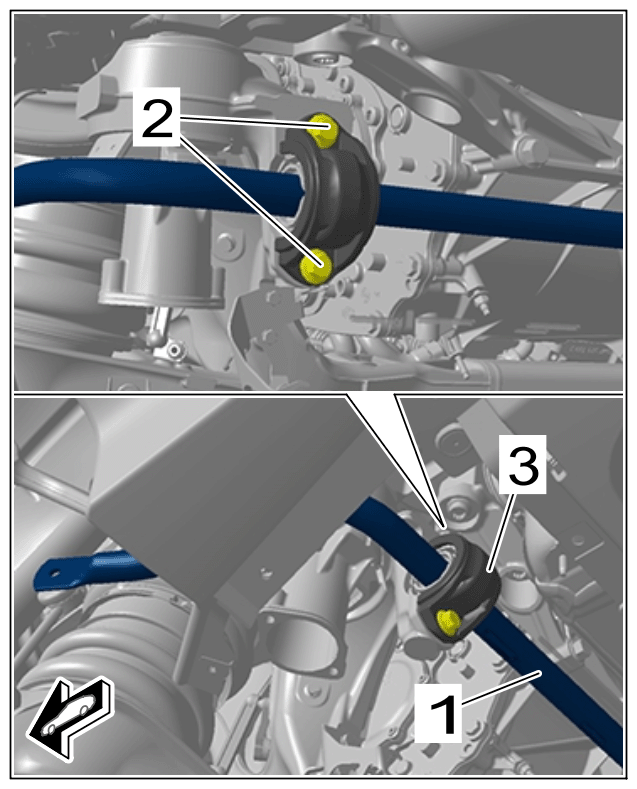

      Anti-roll bar (PDCC), right side

      Information

      Threaded joints must only be tightened in zero position to prevent warping in the bearings.

2. Position anti-roll bar clamp -3-  and fit new  screws -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

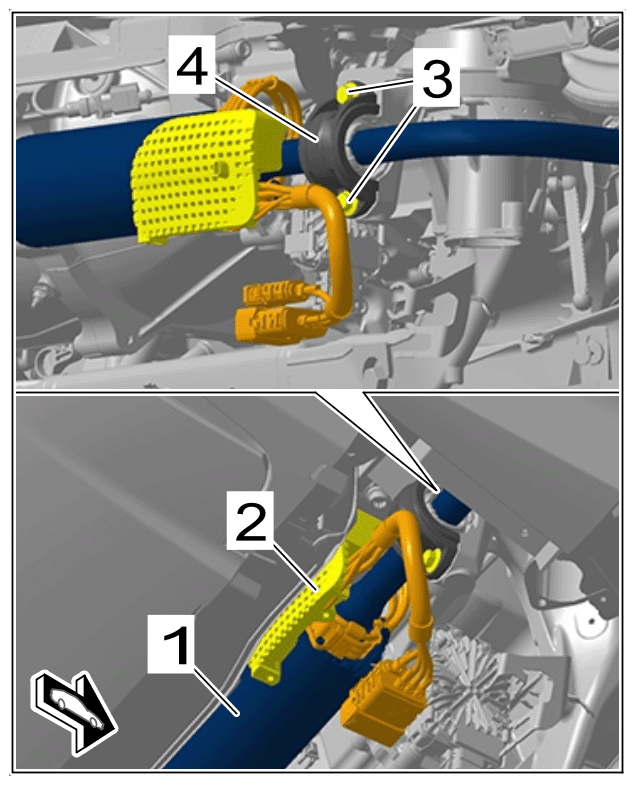

   Anti-roll bar (PDCC), left side

3. Install strut -1-  .
   1. 3.1  Position strut -1-  .
   2. 3.2  Fit and tighten screws -5-  .

      > Tightening torque 30 Nm (22 ftlb.)

   3. 3.3  Fit and tighten nuts -4-  .

      > Tightening torque 10 Nm (7.5 ftlb.)

   4. 3.4  Fit and tighten screws -3-  .

      > Tightening torque 10 Nm (7.5 ftlb.)

   5. 3.5  Fit and tighten screws -2-  .

      > Tightening torque 8 Nm (6 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

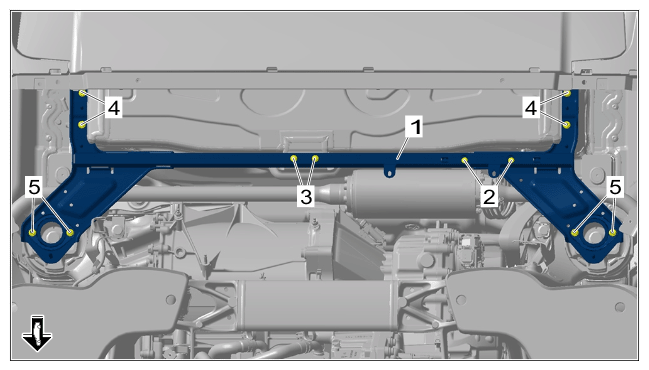

      Strut

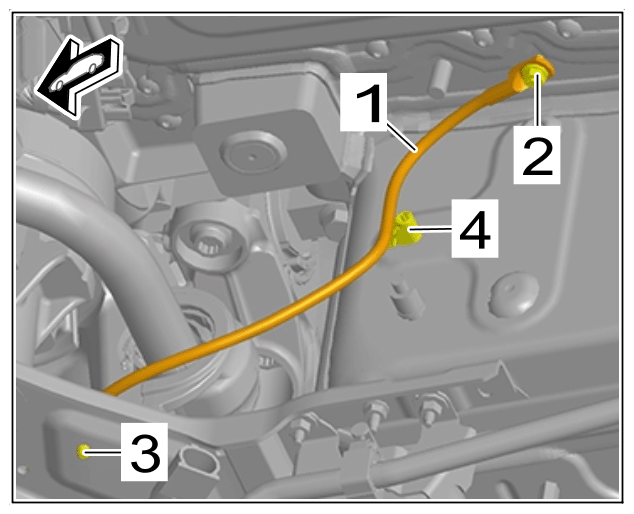

4. Secure ground strap -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground line

   1. 4.1  Position ground line -1-  .
   2. 4.2  Screw on and tighten nut -2-  .

      > Tightening torque 4.5 Nm (3.25 ftlb.)

   3. 4.3  Clip in clips -2 and 3-  .

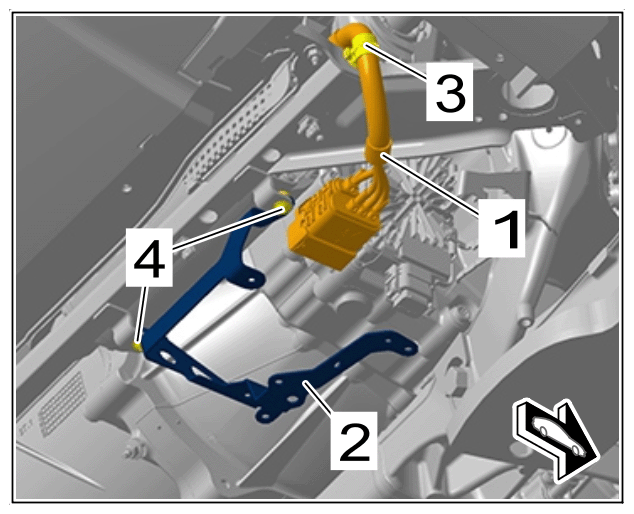

5. Secure wire harness -1-  and install PDCC control unit holder -2-  .
   1. 5.1  Position wire harness -1-  and clip in clip -3-  .
   2. 5.2  Position PDCC control unit holder -2-  .
   3. 5.3  Fit and tighten screws -4-  .

      > Tightening torque 8 Nm (6 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      PDCC control unit holder

      Information

      The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

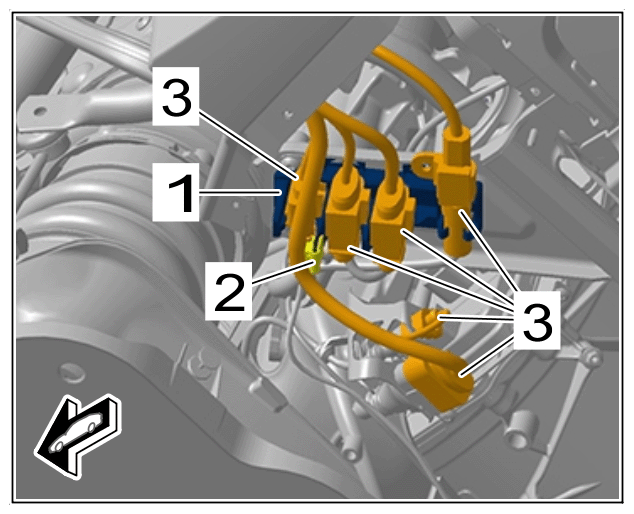

6. Install line bracket -1-  .
   1. 6.1  Clip in line bracket -1-  .
   2. 6.2  Connect and lock electric plug connections -3-  .
   3. 6.3  Clip in clip -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Line bracket
