Removing Cover

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

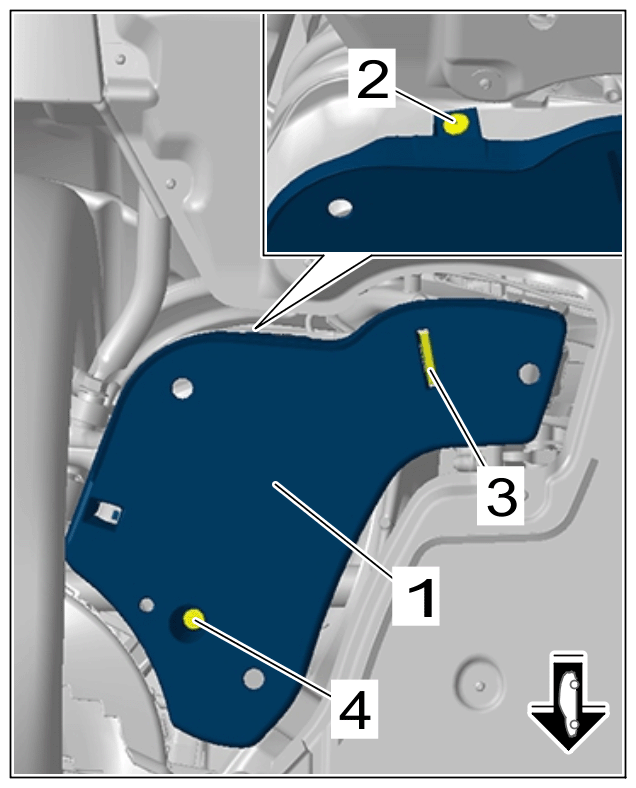

1. Remove cover -1-  .
   1. 1.1  Unclip clip -2-  .
   2. 1.2  Cut tie-wrap -3-  .
   3. 1.3  Unscrew screw -4-  .
   4. 1.4  Disengage cover -1-  and remove it.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cover
