Installing Cover

  1. Install cover -1-  .
    1. 1.1  Engage cover -1-  and position it.
    2. 1.2  Screw in and tighten screw -4-  .

      > Tightening torque 5 Nm

    3. 1.3  Clip in clip -2-  .
    4. 1.4 Install new  tie-wraps -3-  .

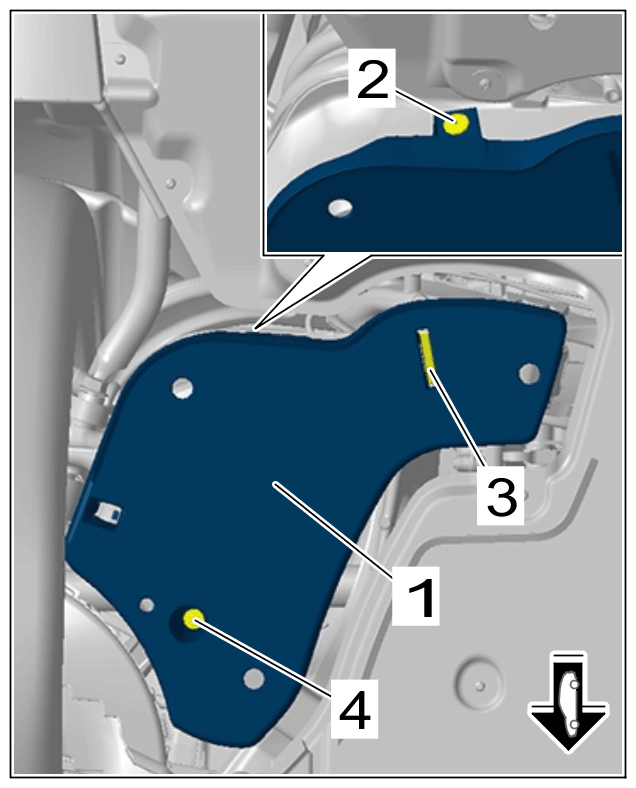

      G15553013Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cover
