Tools And Materials: Tools
Information
The > 9823/2 - spring compressor is required for removing and installing the coil springs.

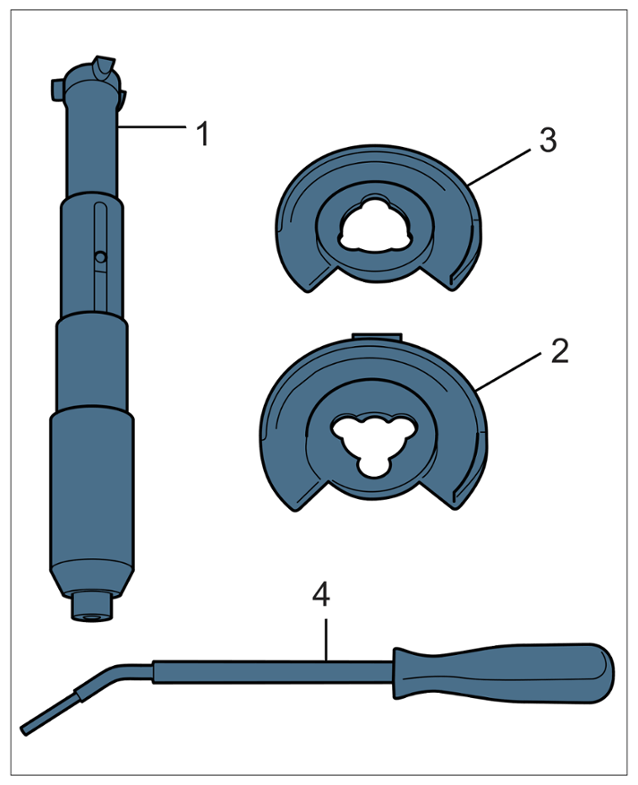

Spring compressor 9823/2
| 1 | Clamping cylinder |
| 2 | Upper scrim tensioning plate from > 9823/1 - spring tensioning plates with latch and support for holding wrench -4- . |
| 3 | Lower spring tensioning plate from > 9823/1 - spring tensioning plates |
| 4 | Holding wrench |
