Installing Coil Spring

WARNING: Preloaded or pressurised components

Information

If the coil spring is replaced: Always replace coil springs in pairs .
When replacing the coil springs, use new spring plates due to settling behaviour and pitting .

Information

Observe information on coil spring colour markings and insert colours.

Information on coil spring colour markings and inserts:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

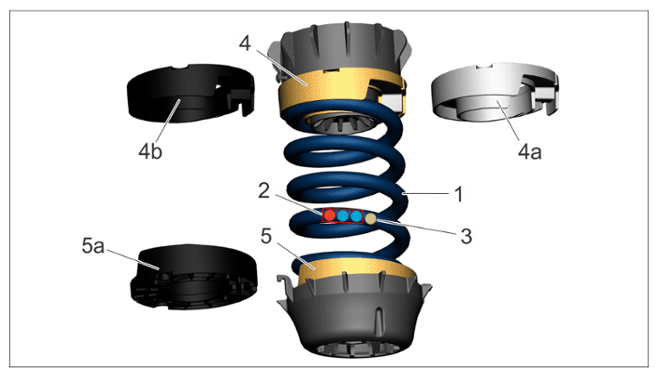

Coil spring markings and inserts

1	Coil spring
2	Coil spring colour markings (e.g. red-blue-blue)
3	Colour marking for top insert (no separate marking for black, as spring is black)
4	Top insert in beige
4a	Top insert in grey
4b	Top insert in black
5	Bottom insert - beige
5a	Bottom insert - black

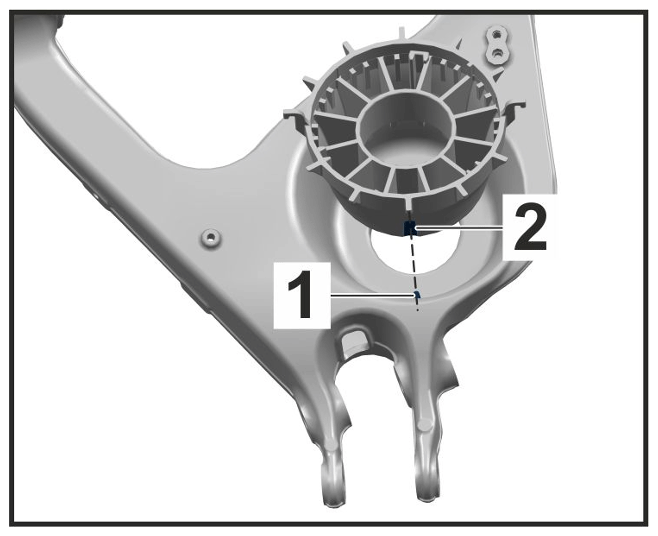

Position the bottom insert seat into the axle guide so that lug -1- engages in groove -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Alignment of bottom insert

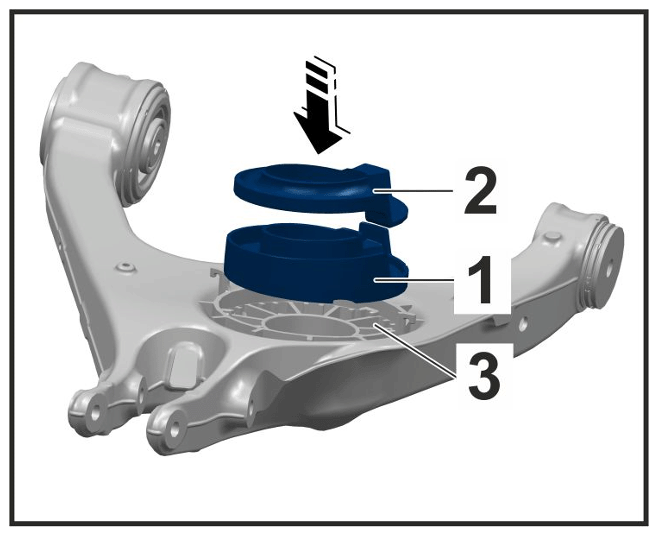

Place insert -1- with spring plate -2- into seat -3- , ensuring that the contours align with each other.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting insert with spring plate

Information

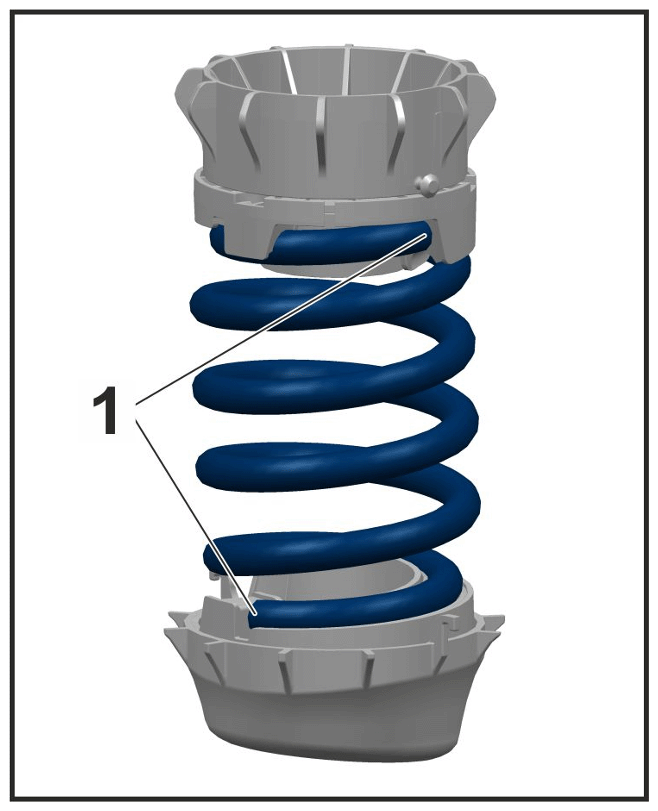

The top and bottom end of the spring coil must be touching the stop on the spring plates -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing coil springs
Fit top inserts and spring plate at the top together with coil spring.
Carefully relieve tension on the coil spring using clamping cylinder and remove > 9823/2 - spring compressor .

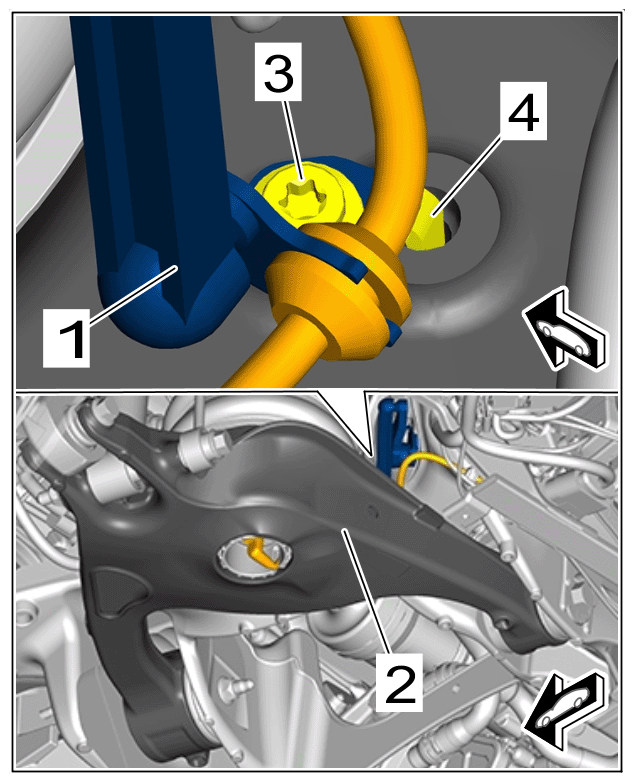

Secure rear level sensor holder -1- to trailing arm -2- .

5.1 Position rear level sensor holder -1- with retaining lug -4- on trailing arm -2- .

5.2 Fit and tighten screw -3- .

> Initial tightening 3 Nm (2 ftlb.)

> Final tightening 45 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear level sensor holder
