Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

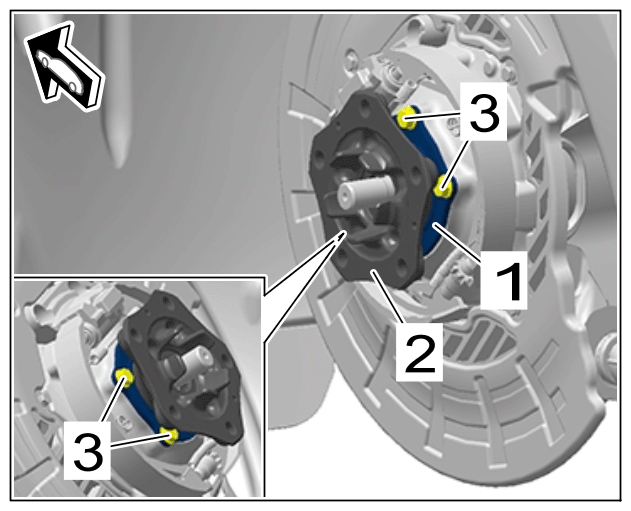

| Wheel bearing to rear wheel bearing housing | Initial tightening/Screws/Item 3/Always replace screws following removal. | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Rear wheel bearing |
|||||
| Wheel bearing to rear wheel bearing housing | Final tightening/Screws/Item 3/Always replace screws following removal. | Torque angle | + 90 ° | ||
|
Rear wheel bearing |
