Installing Rear Wheel Bearing Housing

CAUTION: Electrically moved components

Danger of limbs being trapped
→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

WARNING: Wheel bearing housing raised incorrectly

Risk of crushing
Risk of damage to components
→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

Once PDCC is ready for operation, chassis adjustments can be made. To avoid injury/crushing, only work near the anti-roll bar, lower trailing arms and bellows of the steering gear without establishing operational readiness and always allow for the run-on time of 60 seconds.

Information

Lubricate the drive shaft splines all the way around with Molub Alloy Paste TA .
The thread must be free of grease .

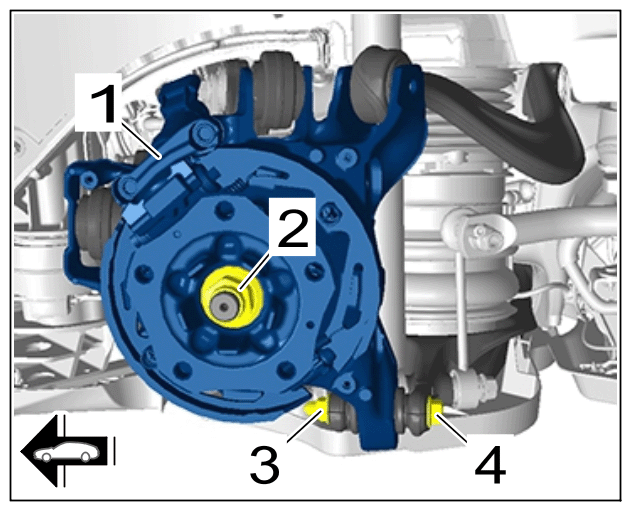

Install rear wheel bearing housing -1- .

1.1 Thinly grease the splines of the drive shaft with Molub Alloy Paste.
1.2 Insert drive shaft into wheel hub and position rear wheel bearing housing -1- on lower trailing arms.
1.3 Insert new screw -4- .
1.4 Screw on new nut -3- and counter at screw -4- , but do not tighten yet.

1.5 Screw new nut onto drive shaft -2- and tighten hand-tight.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wheel bearing housing

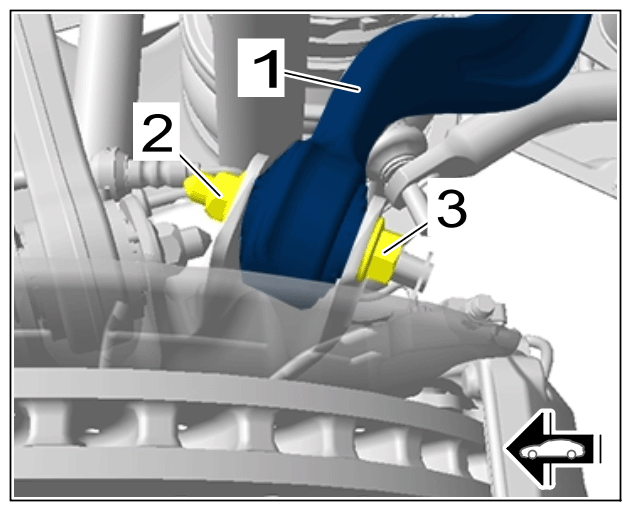

Secure rear upper control arm -1- to the wheel bearing housing.

2.1 Fit rear upper control arm -1- on wheel bearing housing.

2.2 Insert new screw -3- and screw on new nut -2- , but do not tighten yet.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear upper control arm on wheel bearing housing

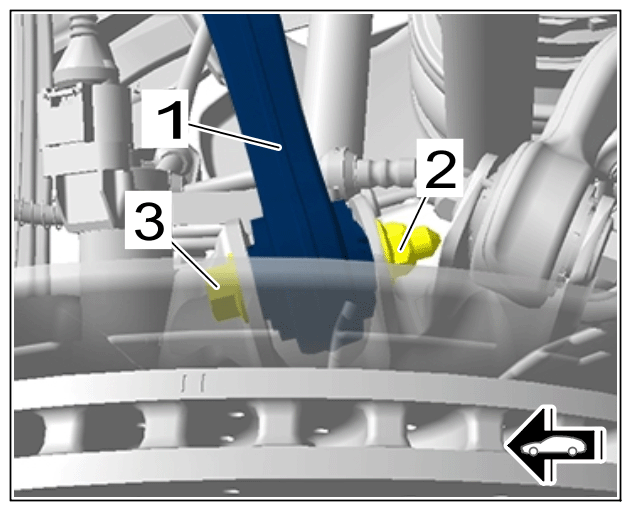

Secure front upper control arm -1- to wheel bearing housing.

3.1 Fit front upper control arm -1- on wheel bearing housing.

3.2 Insert new screw -3- and fit new nut -2- , but do not tighten yet.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front upper control arm on wheel bearing housing

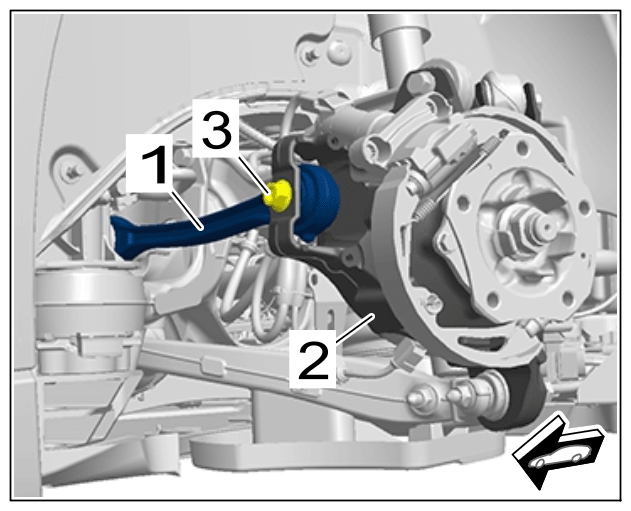

Secure steering rod -1- to wheel bearing housing -2- .

4.1 Fit steering rod -1- .

4.2 Screw in new screw -3- , but do not tighten yet.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Steering rod

Information

Threaded joints must only be tightened in zero position. Otherwise, warping can occur in the bearings.

Lift wheel suspension to zero position using > VAS 6931 - engine and gearbox jack . > Zero position (shown on rear axle as an example)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Zero position (shown on rear axle as an example)

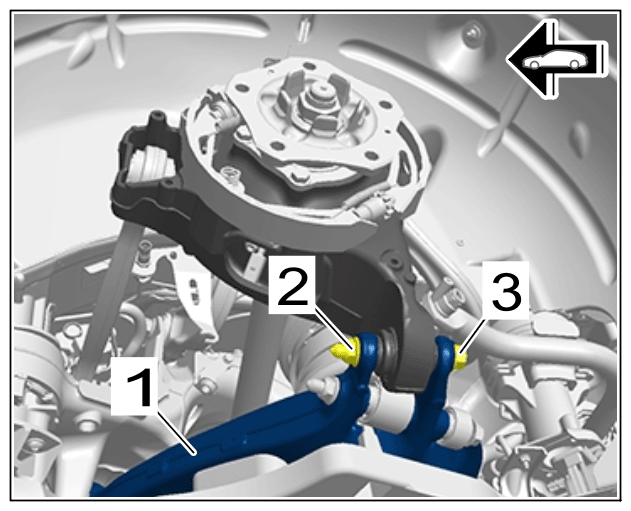

Secure lower trailing arm -1- .

6.1 Tighten nut -2- and counter at screw -3- .

> Tightening torque 70 Nm

> Torque angle + 180 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower trailing arm on wheel bearing housing

Tighten threaded joint securing upper control arm at the rear -1- to wheel bearing housing.

7.1 Tighten nut -2- and counter at screw -3- .

> Tightening torque 70 Nm (52 ftlb.)

> Torque angle + 90 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper control arm on wheel bearing housing

Tighten threaded joint securing upper control arm at the front -1- to wheel bearing housing.

8.1 Tighten nut -2- and counter at screw -3- .

> Tightening torque 70 Nm (52 ftlb.)

> Torque angle + 90 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper control arm on wheel bearing housing

Tighten screw on steering rod -3- .
> Tightening torque 70 Nm (52 ftlb.)

> Torque angle + 90 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Steering rod

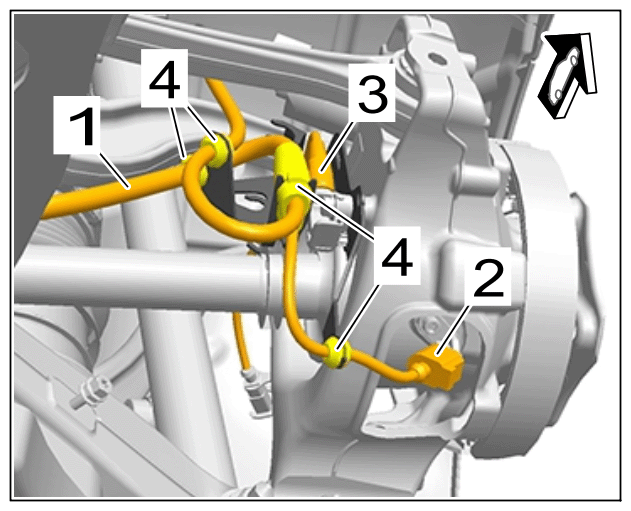

Secure electric wiring harness -1- .

10.1 Position electric wiring harness -1- .
10.2 Connect and lock electric plug connections -2 and 3- .

10.3 Engage retaining rubbers -4- in the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wiring harness

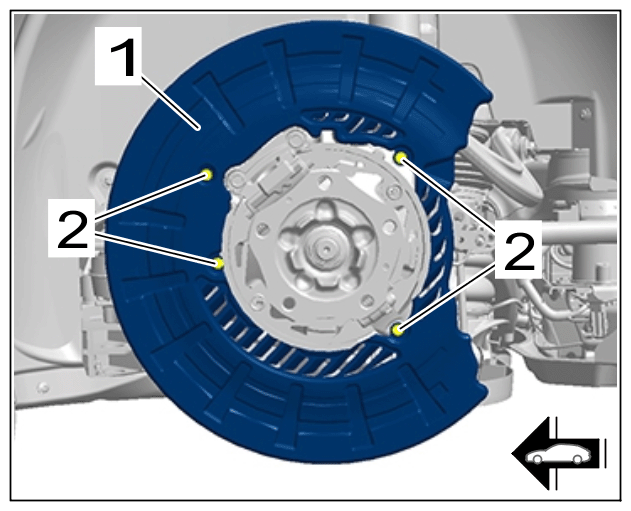

Install rear brake cover plate -1- .

11.1 Fit rear brake cover plate -1- .

11.2 Fit and tighten screws -2- .

> Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear brake cover plate
