Technical Values

Location	Description	Type	Basic value
Rear upper control arm to wheel bearing housing	Initial tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	70 Nm (52 ftlb.)

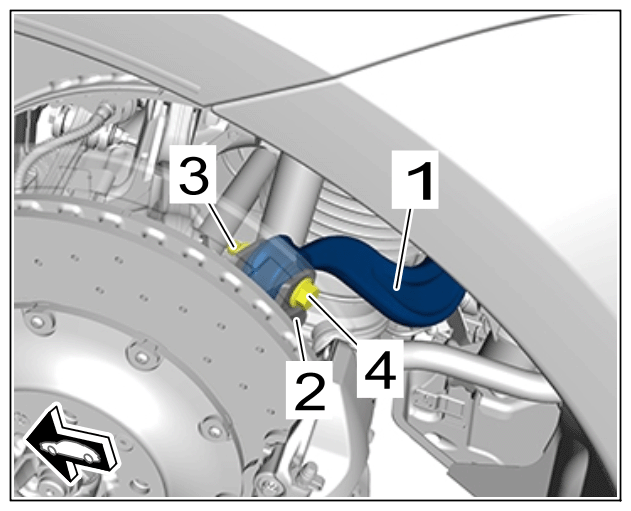

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear upper control arm on wheel bearing housing
Rear upper control arm to wheel bearing housing	Final tightening/Nut/Screw/Items 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Real upper control arm on wheel bearing housing
Upper control arm, rear to rear axle housing	Initial tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	70 Nm (52 ftlb.)

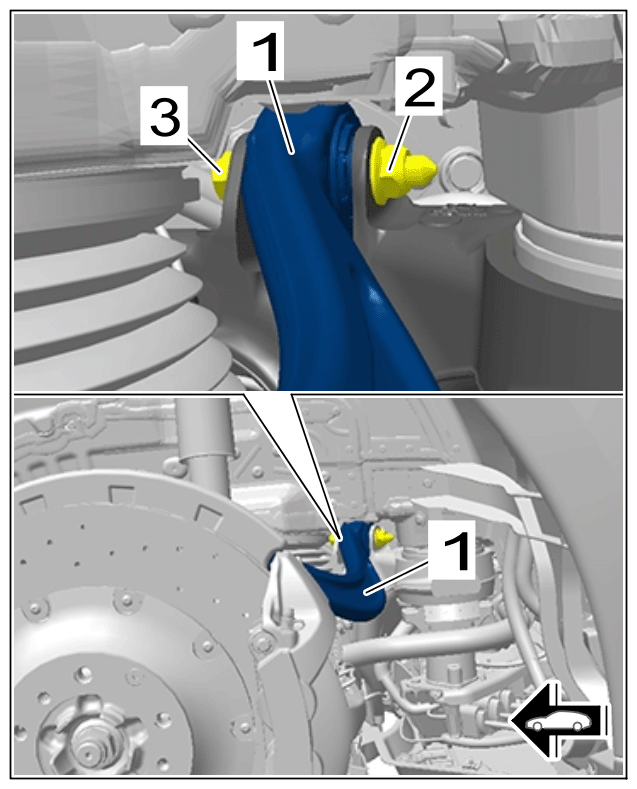

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm
Upper control arm, rear to rear axle housing	Final tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm
