Technical Values

Location	Description	Type	Basic value

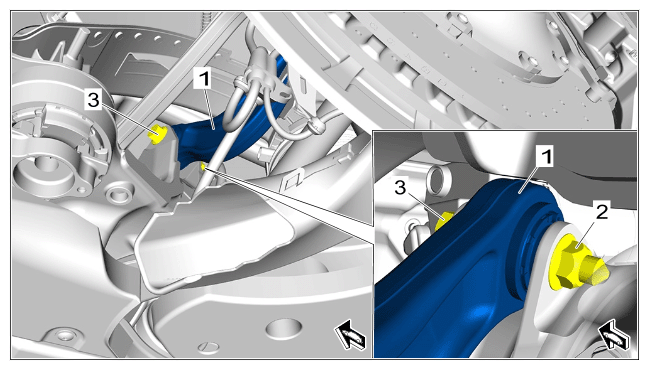

Upper control arm front to rear axle housing	Initial tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm
Upper control arm, front to rear axle housing	Final tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm

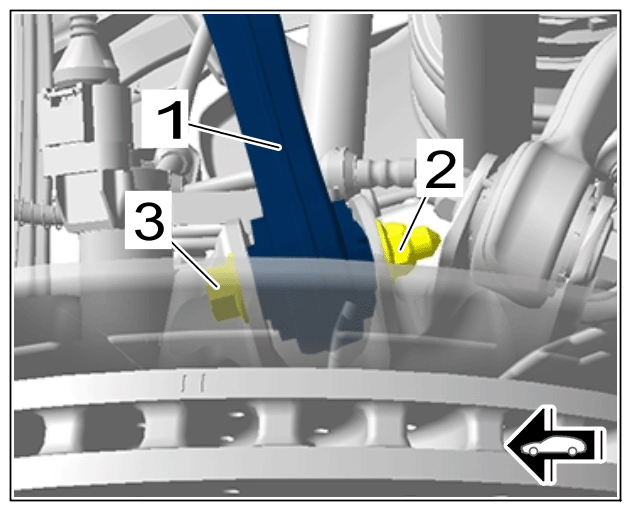

Upper control arm, front to wheel bearing housing	Initial tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Tightening torque	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm
Upper control arm, front to wheel bearing housing	Final tightening/Nut/Screw/Item 2 and 3/Always replace threaded connection following removal.	Torque angle	+ 90 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper control arm
