Removing Drive Shaft

Information

If the outer joint pin is broken, the wheel hub must also be replaced.

1. Only for the left drive shaft:

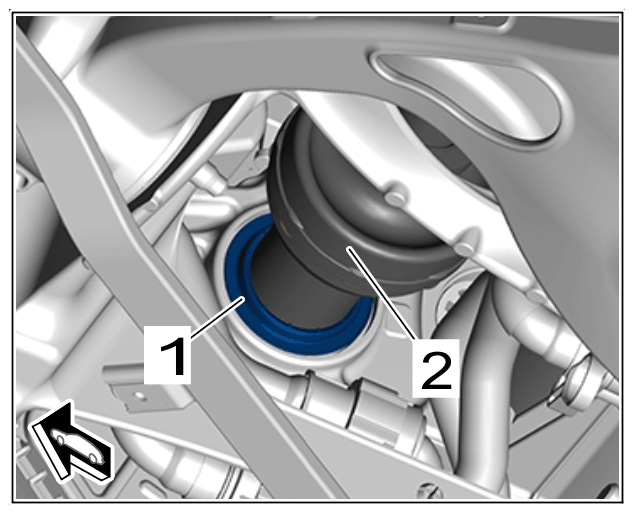

   Carefully break the protective ring -1-  on the left drive shaft -2-  into three pieces using a suitable tool ant remove it. Do not damage the bearing underneath it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Protective ring

   Information

   When levering off the drive shafts, pay particular attention to the following points:

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bars on rear axle housing

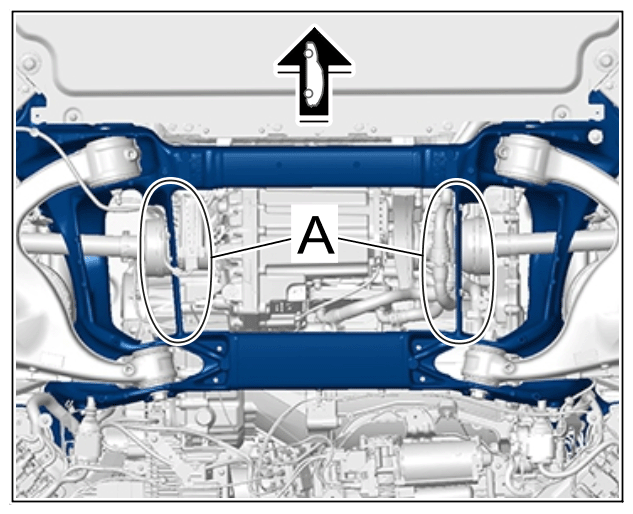

   • Do not lever them off at the bars -A- on the rear axle housing  .
   • The tyre iron must only be supported on the transmission housing  .
   • Always protect the drive shafts from damage by affixing fabric adhesive tape at the positions at which the tyre iron is used  .
   • A wooden block (approx. 40 x 40 x 100) must be placed underneath the right drive shaft in order to lever it off  .

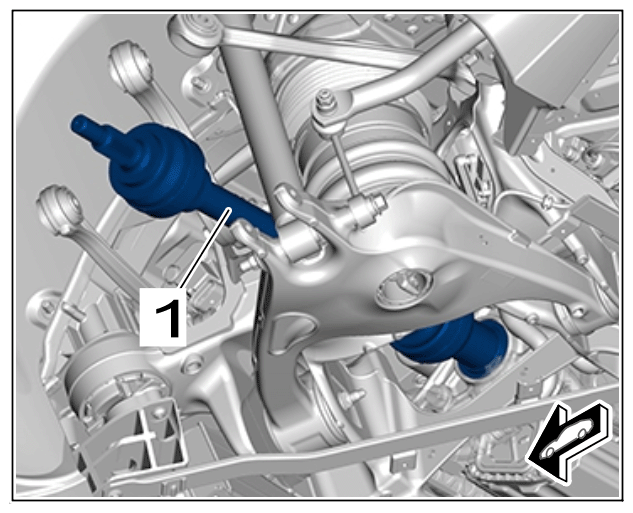

2. Loosen the drive shaft -1-  from the rear final drive using a mounting lever and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drive shaft
