Removing Strut (Front Section)

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Remove strut (front section) -1-  .
   1. 1.1  Unscrew screw -2-  .
   2. 1.2 Only for front right section:

      Unclip clips from wire harness.

   3. 1.3  Unscrew nut -3-  and remove strut (front section) -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

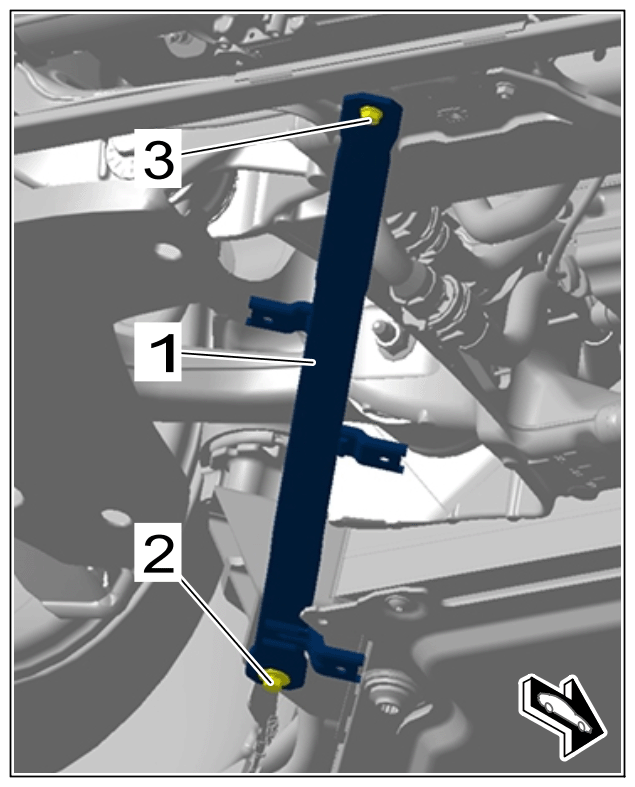

      Strut (front section)
