Remove Strut (Completely)

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Detach clip -2-  , release and disconnect electric plug connections -3-  , then set to the side.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

2. Remove strut -1-  (completely).
   1. 2.1  Unscrew screw -2-  .
   2. 2.2  Unscrew and remove screws -3-  .
   3. 2.3  Unclip clips on wiring harness at the front right section.
   4. 2.4  Unscrew nuts -4-  and remove strut (completely) -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

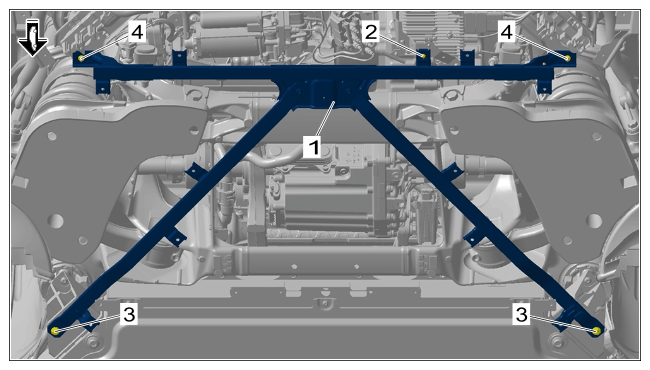

      Strut (complete)
